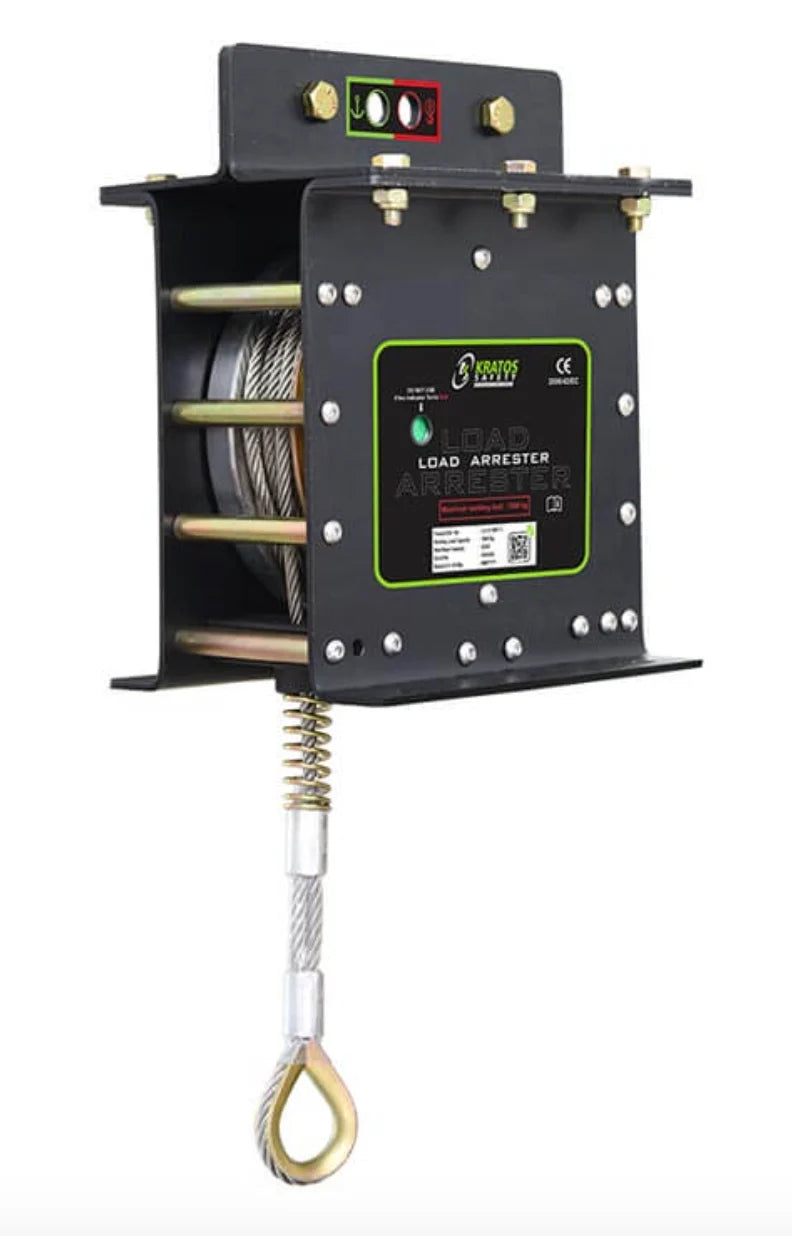

1000kg Polyamide Alloy Steel Wire Rope Load Arrester

The cable load arresters are used to stop the failing of a load (basketball hoop, ramp lighting, industrial machines etc…) for a short distance in case of:

  • A break of chain or cable for hoisting the load.
  • A failure of the retaining elements of the load.
  • Load arresters designed to stop the fall of a load with a maximum weight of 1000kg.
  • Casings made up of steel.
  • Galvanised steel wire rope 8mm dia.
  • Multi-ratchet quick fall arrest system.
  • Integrated shock absorber, which reduces the efforts on the structure.
  • Reduced fall arrest distance.
  • Intensive number of cycles.

Please note this product can have a lead-time of up to 4 to 6 weeks from order, this will be confirmed at point of order.

Spec

SKU
Length Load Capacity Weight
m kgs kgs
286-1710-9
11 1000 23
286-1710-10
16 1000



Downloads


1000kg Polyamide Alloy Steel Wire Rope Load Arrester

The cable load arresters are used to stop the failing of a load (basketball hoop, ramp lighting, industrial machines etc…) for a short distance in case of:

  • A break of chain or cable for hoisting the load.
  • A failure of the retaining elements of the load.
  • Load arresters designed to stop the fall of a load with a maximum weight of 1000kg.
  • Casings made up of steel.
  • Galvanised steel wire rope 8mm dia.
  • Multi-ratchet quick fall arrest system.
  • Integrated shock absorber, which reduces the efforts on the structure.
  • Reduced fall arrest distance.
  • Intensive number of cycles.

Please note this product can have a lead-time of up to 4 to 6 weeks from order, this will be confirmed at point of order.

Spec

SKU
Length Load Capacity Weight
m kgs kgs
286-1710-9
11 1000 23
286-1710-10
16 1000



Downloads


Kratos by Kratos

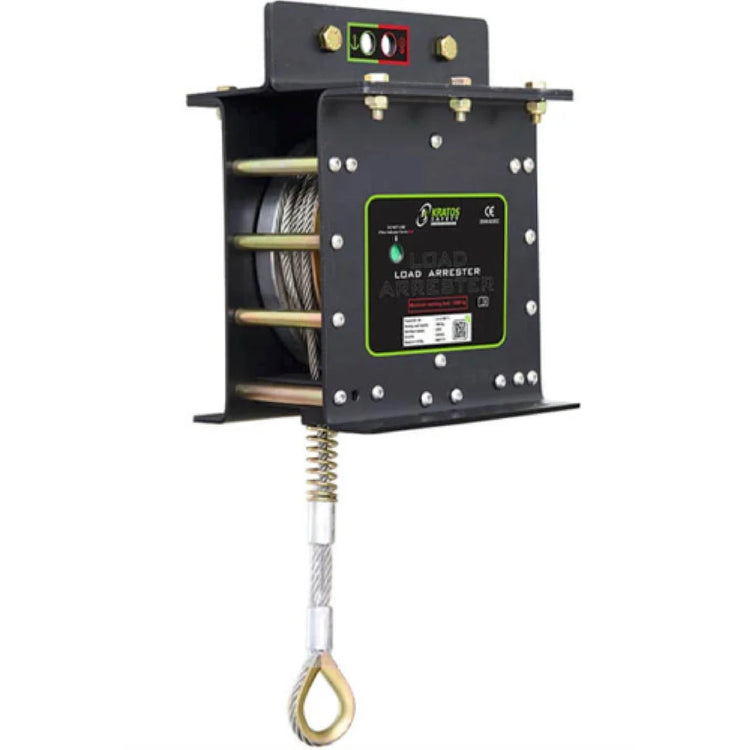

1000kg Load Arrester
