Product Information

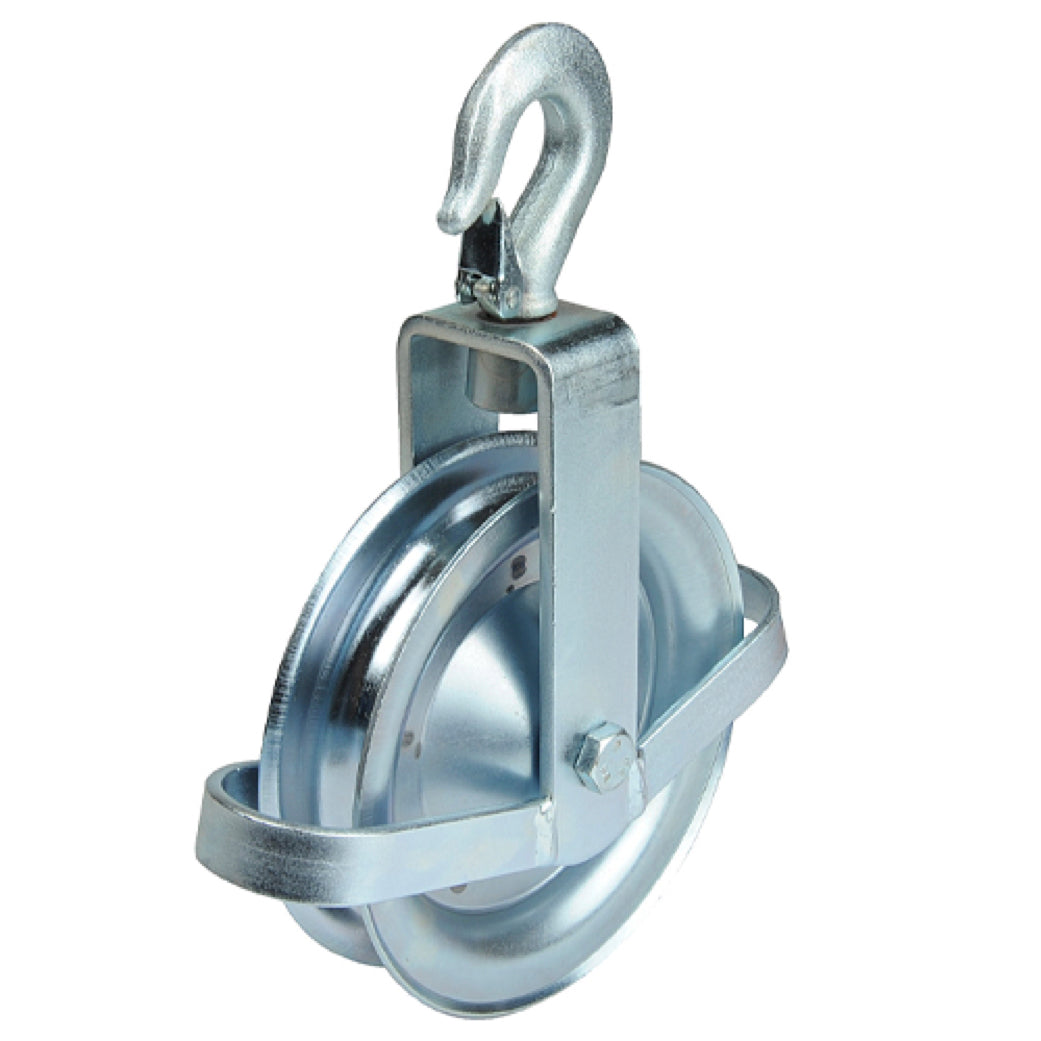

WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook (ETTER)

  • WEBI steel pulley / sheave with rotating hook for construction site
  • Plain bearing, with self-lubricating polyamide bearing bush
  • Material finish steel pulley with galvanised steel housing, steel hook with security spring
  • Hook load capacities from 200 kg through to 250 kg (manual operation only)
  • Width of groove on pulley to suit 25 mm through to 32 mm rope (see specification PDF for full details)
  • For use with hemp and synthetic fibre ropes
  • SWISS MANUFACTURED

Spec

Model Capacity Pulley Diameter Rope Diameter
155-22-1 200 kg 140 mm 25 mm
155-22-2 250 kg 160 mm 28 mm
155-22-3 250 kg 200 mm 32 mm
155-22-4 250 kg 250 mm 32 mm


Downloads

pulleyPulley Cat 2018

pulleyEtter 201 Pulley Data Sheet


    WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook (ETTER)

    • WEBI steel pulley / sheave with rotating hook for construction site
    • Plain bearing, with self-lubricating polyamide bearing bush
    • Material finish steel pulley with galvanised steel housing, steel hook with security spring
    • Hook load capacities from 200 kg through to 250 kg (manual operation only)
    • Width of groove on pulley to suit 25 mm through to 32 mm rope (see specification PDF for full details)
    • For use with hemp and synthetic fibre ropes
    • SWISS MANUFACTURED

    Spec

    Model Capacity Pulley Diameter Rope Diameter
    155-22-1 200 kg 140 mm 25 mm
    155-22-2 250 kg 160 mm 28 mm
    155-22-3 250 kg 200 mm 32 mm
    155-22-4 250 kg 250 mm 32 mm


    Downloads

    pulleyPulley Cat 2018

    pulleyEtter 201 Pulley Data Sheet


      Etter (WEBI) Pulleys by Etter (WEBI) Pulleys

      200-250kg WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook

      Translation missing: en.products.product.sku:155-22-1

      Capacity:
      Pulley Diameter:
      Rope Diameter:
