Product Information

One of the smallest and lightest chain blocks available

  • 250kg SWL Hand Chain Block
  • Guaranteed light load protection
  • Double cover protection for brake chamber
  • Drop forged & heat treated alloy hooks
  • High quality alloy calibrated load chain
  • Proof tested to 1.5 times rated capacity
  • 3m height of lift as standard but can be chain to exact requirement
  • 4:1 Factor of safety
  • Tiger PROCB14 (was TCB14)
 Capacity Effort Load Chain

Std HoL

 Mass 3m HoL Mass Per Extra m HoL

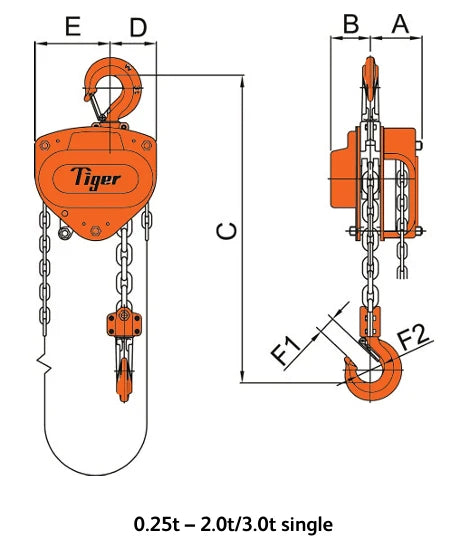

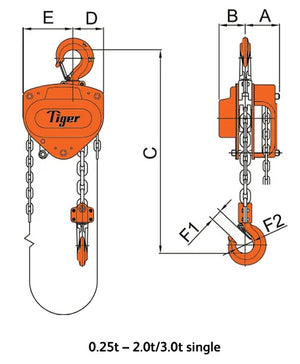

(tonne) (kg) A B C D E F1 F2 Diameter (mm) No of Falls (m) (kg) (kg)
0.25 17 64 40 240 36 60 22 31 4 1 3 3.8 0.5

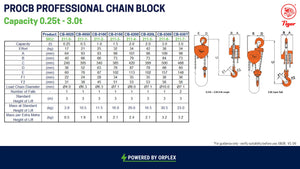

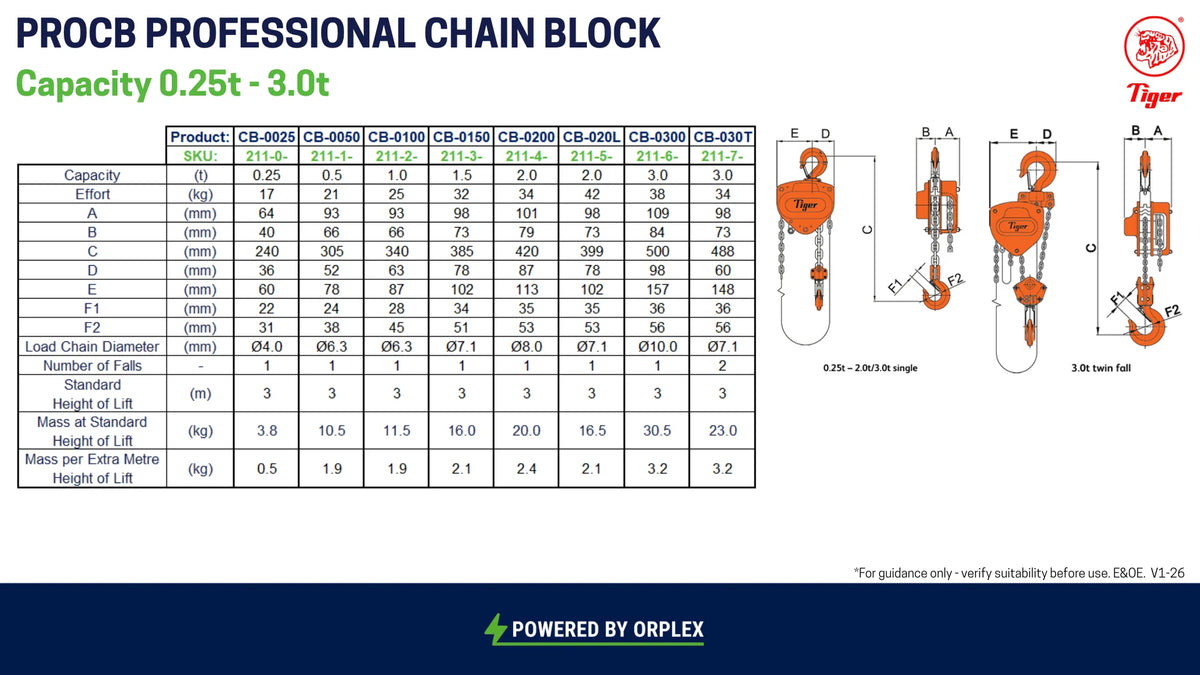

Technical Data Sheet

One of the smallest and lightest chain blocks available

  • 250kg SWL Hand Chain Block
  • Guaranteed light load protection
  • Double cover protection for brake chamber
  • Drop forged & heat treated alloy hooks
  • High quality alloy calibrated load chain
  • Proof tested to 1.5 times rated capacity
  • 3m height of lift as standard but can be chain to exact requirement
  • 4:1 Factor of safety
  • Tiger PROCB14 (was TCB14)
 Capacity Effort Load Chain

Std HoL

 Mass 3m HoL Mass Per Extra m HoL
(tonne) (kg) A B C D E F1 F2 Diameter (mm) No of Falls (m) (kg) (kg)
0.25 17 64 40 240 36 60 22 31 4 1 3 3.8 0.5


Technical Data Sheet

Tiger Products by Tiger Products

250kg CHAIN BLOCK PROCB14

211-0-1

Height of Lift:
