Product Information

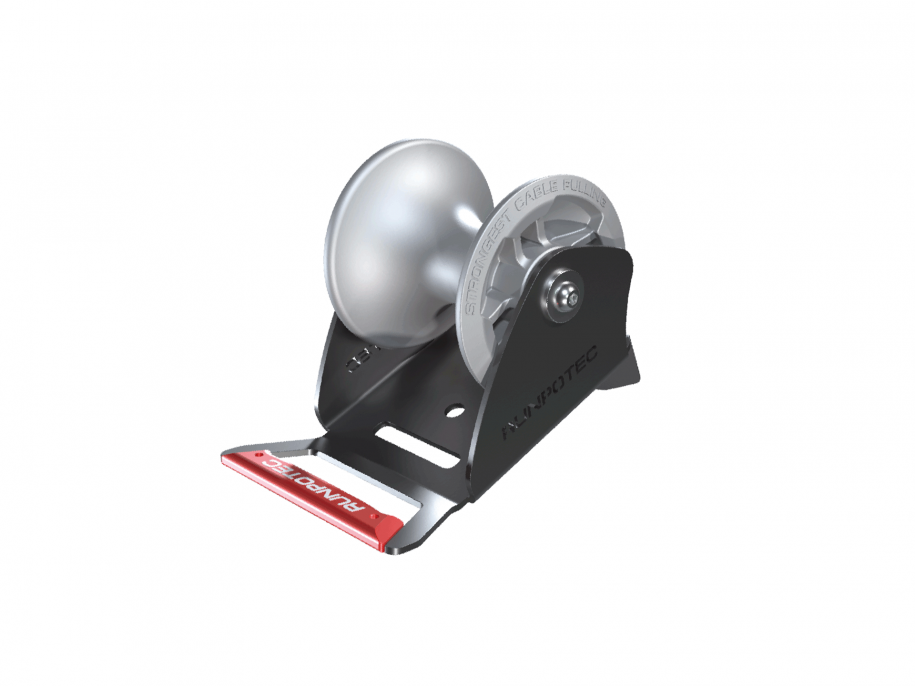

The cable guide roller - shaft inside edge is ideally suited for mounting on the edge of a shaft or on steps to pull cables gently around corners with the least possible resistance. A right-angled stop is provided by the two lugs. It can be secured in place with a belt or screws via the assembly opening. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life.

Optimum area of application: for mounting on the edge of a shaft or on steps to pull cables gently around corners
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 x cable guide roller - shaft inside edge

ADVANTAGES

  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP coating
  • Ergonomic aluminium carrying handle
  • Load bearing capacity 1.500 kg


Spec

Dimensions: L 220,5 x B 155 x H 163 mm
Weight: 3,03 kg
Material: Roller: Aluminium / Frame: Steel
Load bearing capacity: 1500 kg
Max. cable diameter: Ø 100 mm
Roll diameter: Ø 130 mm
EAN-Code: 9120045476378



Downloads

Duct rod data sheetProduct Data Sheet
