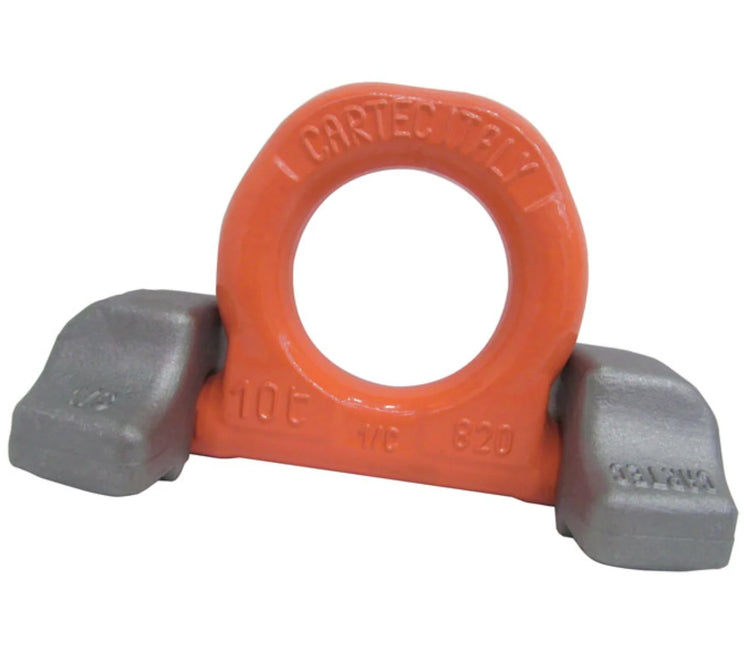

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X
  • Grade 10 high resistant alloy steel.
  • Black painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • The entire perimeter of the base must be welded except for the water discharge area.
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available  2.1    DoC

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

      SKU W.L.L. A B C D E F G H Welding Thickness Weight
      t mm mm mm mm mm mm mm mm HV + Δa kgs
      286-618-1 4 14 65 48 29 134 14 60 79 HV 4+3 0.73
      286-618-2 6.7 20 83 60 39 169 16 88 103 HV 5.5+3 1.8
      286-618-3 10 22 96 65 48 196 19.5 98 118 HV 6+4 3
      286-618-4 16 31 126 90 55 264 29 127 155 HV 8.5+4 5.75
      286-618-5 30 42 175 130 79 371 45 157 217 HV 15+4 16



      Downloads

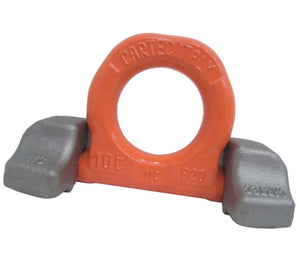

      Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X
      • Grade 10 high resistant alloy steel.
      • Black painted finish.
      • Minimum breaking load is 4 times the W.L.L.
      • The entire perimeter of the base must be welded except for the water discharge area.
      • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
      • Full CAD support available upon request.
      • Certification available  2.1    DoC

      In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

      Lc = capacity needed per single bracket.

      C = load to anchor.

      δ = pulling inclination angle.

      b = number of sling arms.

      Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

          Spec

          SKU W.L.L. A B C D E F G H Welding Thickness Weight
          t mm mm mm mm mm mm mm mm HV + Δa kgs
          286-618-1 4 14 65 48 29 134 14 60 79 HV 4+3 0.73
          286-618-2 6.7 20 83 60 39 169 16 88 103 HV 5.5+3 1.8
          286-618-3 10 22 96 65 48 196 19.5 98 118 HV 6+4 3
          286-618-4 16 31 126 90 55 264 29 127 155 HV 8.5+4 5.75
          286-618-5 30 42 175 130 79 371 45 157 217 HV 15+4 16



          Downloads



          Cartec by Cartec

          Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X

          286-618-1

          W.L.L.:
          Show more
