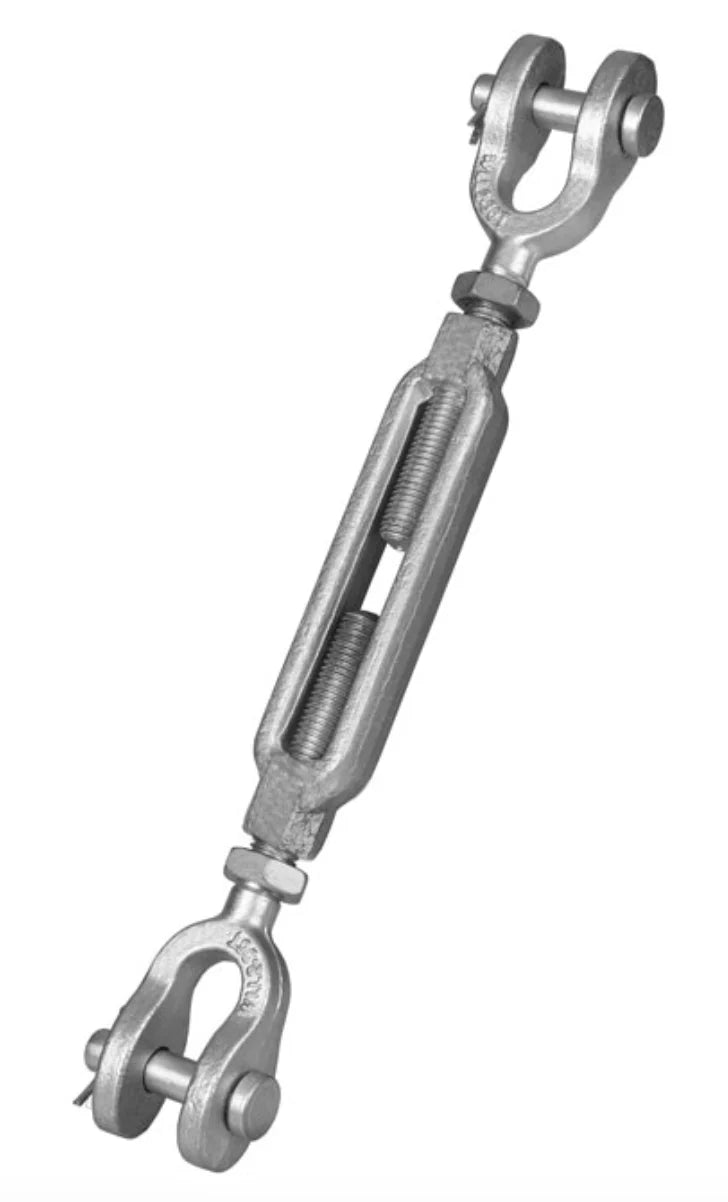

Drop Forged Turnbuckle Jaw/Jaw - US Style

  • Drop forged, high tensile steel, SAE 1035 or SAE 1045.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
  • Temperature range -20ºC up to +200ºC.
  • Proof load tested to 2.5 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • UNC Threads.
  • All items available with lock nuts.
  • Up to 5/8″ with safety bolt, 3/4″ and above with cotter pins.
  • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
  • Certification available DoC



      Spec

      SKU

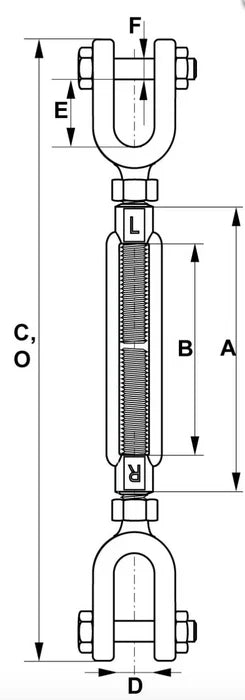

      Size Take Up W.L.L. A B D E F C O Weight
      inches inches t mm mm mm mm mm mm mm kgs
      286-900-X
      1/4 4 0.23 120 102 11.5 15.75 7.5 200 302 0.16
      286-900-X
      5/16 4 1/2 0.36 138 114 12.7 21.2 7.6 244 358 0.24
      286-900-1
      3/8 6 0.54 180 152 13.7 21.5 9 290 442 0.71
      286-900-2
      1/2 6 1 190 152 16 26.5 11 330 482 0.37
      286-900-3
      1/2 9 1 267 229 16 26.5 11 406 635 0.79
      286-900-4
      1/2 12 1 343 305 16 26.5 11 480 785 1.09
      286-900-5
      5/8 6 1.59 203 152 21 33 14 378 530 1.35
      286-900-6
      5/8 9 1.59 279 229 21 33 14 454 683 1.53
      286-900-7
      5/8 12 1.59 355 305 21 33 14 530 835 1.79
      286-900-8 5/8 18 1.59 1.99
      286-900-9
      3/4 6 2.36 213 152 26 37.25 17.5 422 574 1.99
      286-900-10
      3/4 9 2.36 289 229 26 37.25 17.5 498 727 2.48
      286-900-11
      3/4 12 2.36 365 305 26 37.25 17.5 574 879 2.68
      286-900-12
      3/4 18 2.36 517 451 26 37.25 17.5 726 1183 3.32
      286-900-X
      7/8 6 3.27 222 152 31 42.75 20.5 466 618 3.15
      286-900-13
      7/8 12 3.27 374 304 31 42.75 20.5 618 922 3.96
      286-900-14
      7/8 18 3.27 527 457 31 42.75 20.5 770 1227 5.09
      286-900-15
      1 6 4.54 233 152 33 52 24 510 662 4.44
      286-900-16
      1 12 4.54 385 305 33 52 24 662 967 5.69
      286-900-17
      1 18 4.54 537 457 33 52 24 814 1271 6.74
      286-900-18
      1 24 4.54 690 610 33 52 24 966 1576 8.03
      286-900-19
      1 1/4 6 6.89 236 152 47 70.5 31 598 598 8.55
      286-900-20
      1 1/4 12 6.89 388 305 47 70.5 31 750 1055 10.27
      286-900-21
      1 1/4 18 6.89 541 457 47 70.5 31 902 1359 11.99
      286-900-X
      1 1/4 24 6.89 693 610 47 70.5 31 1054 1664 13.69
      286-900-22
      1 1/2 12 9.71 403 305 57 70.5 37 800 1105 13.56
      286-900-23
      1 1/2 18 9.71 555 457 57 70.5 37 952 1409 16.2
      286-900-24
      1 1/2 24 9.71 708 610 57 70.5 37 1104 1714 18.88
      286-900-25
      1 3/4 18 12.7 571 457 66 85 44 1046 1503 25.15
      286-900-26
      1 3/4 24 12.7 724 610 66 85 44 1198 1808 28.06
      286-900-27
      2 24 16.8 740 610 66.3 92 54 1340 1950 43.71
      286-900-28
      2 1/2 24 27.2 795 610 78 110.8 60.5 1478 2088 81.8
      286-900-29
      2 3/4 24 34 795 610 93.5 104.5 73 1562 2172 95.14

      Downloads

      Drop Forged Turnbuckle Jaw/Jaw - US Style

      • Drop forged, high tensile steel, SAE 1035 or SAE 1045.
      • Hot dipped galvanised finish.
      • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
      • Temperature range -20ºC up to +200ºC.
      • Proof load tested to 2.5 times the W.L.L.
      • Minimum breaking load is 5 times the W.L.L.
      • UNC Threads.
      • All items available with lock nuts.
      • Up to 5/8″ with safety bolt, 3/4″ and above with cotter pins.
      • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
      • Certification available DoC



          Spec

          SKU
          Size Take Up W.L.L. A B D E F C O Weight
          inches inches t mm mm mm mm mm mm mm kgs
          286-900-X
          1/4 4 0.23 120 102 11.5 15.75 7.5 200 302 0.16
          286-900-X
          5/16 4 1/2 0.36 138 114 12.7 21.2 7.6 244 358 0.24
          286-900-1
          3/8 6 0.54 180 152 13.7 21.5 9 290 442 0.71
          286-900-2
          1/2 6 1 190 152 16 26.5 11 330 482 0.37
          286-900-3
          1/2 9 1 267 229 16 26.5 11 406 635 0.79
          286-900-4
          1/2 12 1 343 305 16 26.5 11 480 785 1.09
          286-900-5
          5/8 6 1.59 203 152 21 33 14 378 530 1.35
          286-900-6
          5/8 9 1.59 279 229 21 33 14 454 683 1.53
          286-900-7
          5/8 12 1.59 355 305 21 33 14 530 835 1.79
          286-900-8 5/8 18 1.59 1.99
          286-900-9
          3/4 6 2.36 213 152 26 37.25 17.5 422 574 1.99
          286-900-10
          3/4 9 2.36 289 229 26 37.25 17.5 498 727 2.48
          286-900-11
          3/4 12 2.36 365 305 26 37.25 17.5 574 879 2.68
          286-900-12
          3/4 18 2.36 517 451 26 37.25 17.5 726 1183 3.32
          286-900-X
          7/8 6 3.27 222 152 31 42.75 20.5 466 618 3.15
          286-900-13
          7/8 12 3.27 374 304 31 42.75 20.5 618 922 3.96
          286-900-14
          7/8 18 3.27 527 457 31 42.75 20.5 770 1227 5.09
          286-900-15
          1 6 4.54 233 152 33 52 24 510 662 4.44
          286-900-16
          1 12 4.54 385 305 33 52 24 662 967 5.69
          286-900-17
          1 18 4.54 537 457 33 52 24 814 1271 6.74
          286-900-18
          1 24 4.54 690 610 33 52 24 966 1576 8.03
          286-900-19
          1 1/4 6 6.89 236 152 47 70.5 31 598 598 8.55
          286-900-20
          1 1/4 12 6.89 388 305 47 70.5 31 750 1055 10.27
          286-900-21
          1 1/4 18 6.89 541 457 47 70.5 31 902 1359 11.99
          286-900-X
          1 1/4 24 6.89 693 610 47 70.5 31 1054 1664 13.69
          286-900-22
          1 1/2 12 9.71 403 305 57 70.5 37 800 1105 13.56
          286-900-23
          1 1/2 18 9.71 555 457 57 70.5 37 952 1409 16.2
          286-900-24
          1 1/2 24 9.71 708 610 57 70.5 37 1104 1714 18.88
          286-900-25
          1 3/4 18 12.7 571 457 66 85 44 1046 1503 25.15
          286-900-26
          1 3/4 24 12.7 724 610 66 85 44 1198 1808 28.06
          286-900-27
          2 24 16.8 740 610 66.3 92 54 1340 1950 43.71
          286-900-28
          2 1/2 24 27.2 795 610 78 110.8 60.5 1478 2088 81.8
          286-900-29
          2 3/4 24 34 795 610 93.5 104.5 73 1562 2172 95.14

          Downloads

          GT by GT

          5.0

          3 reviews

          Drop Forged Turnbuckle Jaw/Jaw

          Translation missing: en.products.product.sku:286-900-1

          Size/Take Up/W.L.L.:
          Show more
