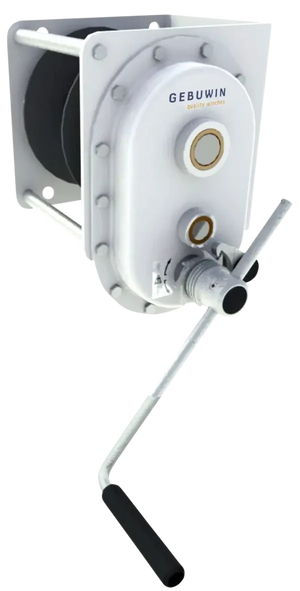

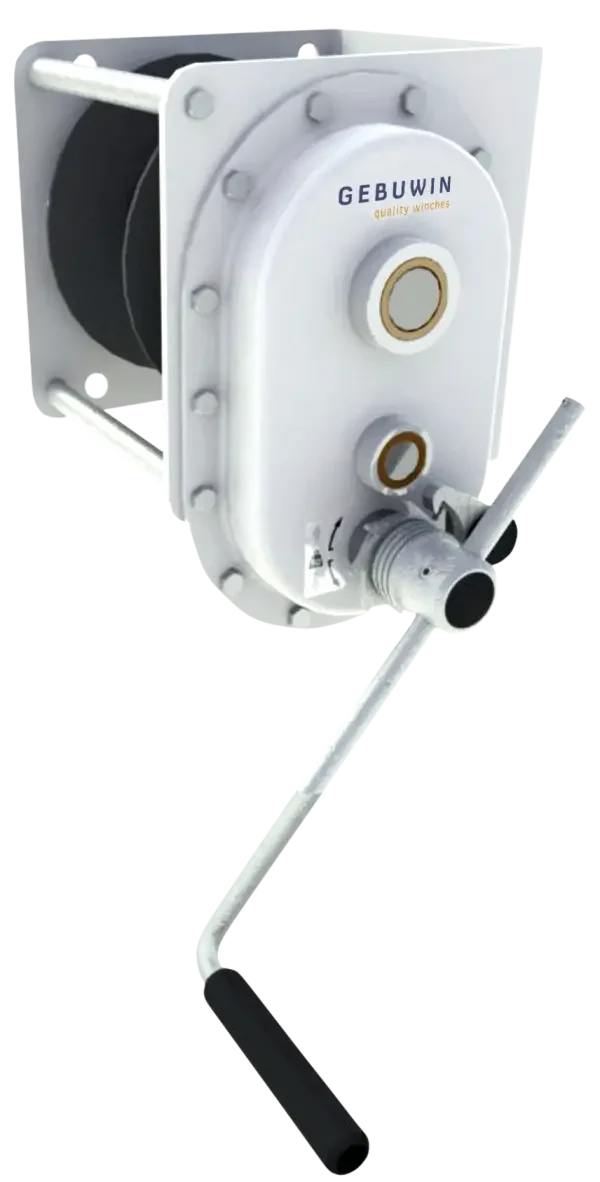

Gebuwin ATEX Spur Gear Hand Winch 1500kg

Beautifully executed spur gear winch, fast and easy. The winch can be mounted to both the wall and the floor. When used for pulling a free spool mechanism is available to disengage the drum.

The hand winch is IP54 standardised, which means that it is resistant to water splashes. In addition to its normal version, this winch is also available in stainless steel 304.

In short, this is a robust player among hand winches that goes the extra mile when it comes to possibilities and capacity.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • protection classification IP54
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards, downwards or at the left
  • closed gearbox to protect against environmental influence
  • adjustable crank
  • suitable for wall and floor mounting
  • 1 layer of paint

Spec

Capacity 1st layer

1500 kg
Capacity 4th layer

1025 kg
Capacity top layer

927 kg
Rope diameter-Ø

10 mm
Rope storage 1st layer

2,5 meter
Rope storage 4th layer

15,4 meter
Rope storage top layer

21 meter
Lift per crank rotation

14 mm
Crank effort at full load

12 daN
Weight (without rope)

27,5 kg



Downloads

Gebuwin ATEX Spur Gear Hand Winch 1500kg

Beautifully executed spur gear winch, fast and easy. The winch can be mounted to both the wall and the floor. When used for pulling a free spool mechanism is available to disengage the drum.

The hand winch is IP54 standardised, which means that it is resistant to water splashes. In addition to its normal version, this winch is also available in stainless steel 304.

In short, this is a robust player among hand winches that goes the extra mile when it comes to possibilities and capacity.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • protection classification IP54
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards, downwards or at the left
  • closed gearbox to protect against environmental influence
  • adjustable crank
  • suitable for wall and floor mounting
  • 1 layer of paint

Spec

Capacity 1st layer

1500 kg
Capacity 4th layer

1025 kg
Capacity top layer

927 kg
Rope diameter-Ø

10 mm
Rope storage 1st layer

2,5 meter
Rope storage 4th layer

15,4 meter
Rope storage top layer

21 meter
Lift per crank rotation

14 mm
Crank effort at full load

12 daN
Weight (without rope)

27,5 kg



Downloads

Gebuwin by Gebuwin

Gebuwin ATEX Spur Gear Hand Winch 1500kg

156-15-34
