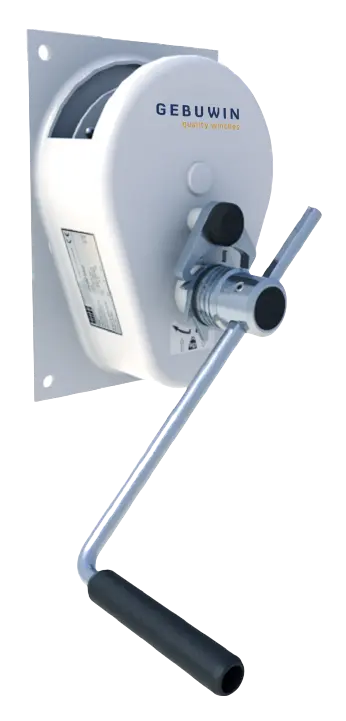

Gebuwin ATEX Spur Gear Hand Winch 300kg
This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.
| Capacity 1st layer |
300 kg |
|---|---|
| Capacity 4th layer |
234 kg |
| Capacity top layer |
172 kg |
| Rope diameter-Ø |
4 mm |
| Rope storage 1st layer |
2,3 meter |
| Rope storage 4th layer |
12,5 meter |
| Rope storage top layer |
35,4 meter |
| Lift per crank rotation |
32 mm |
| Crank effort at full load |
5,5 daN |
| Weight (without rope) |
10 kg |

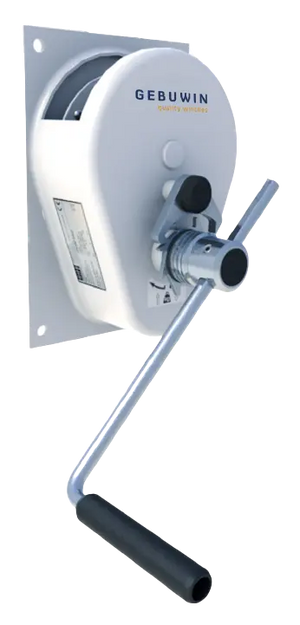

Gebuwin ATEX Spur Gear Hand Winch 300kg
This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.
| Capacity 1st layer |
300 kg |
|---|---|
| Capacity 4th layer |
234 kg |
| Capacity top layer |
172 kg |
| Rope diameter-Ø |
4 mm |
| Rope storage 1st layer |
2,3 meter |
| Rope storage 4th layer |
12,5 meter |
| Rope storage top layer |
35,4 meter |
| Lift per crank rotation |
32 mm |
| Crank effort at full load |
5,5 daN |
| Weight (without rope) |
10 kg |
