Product Information

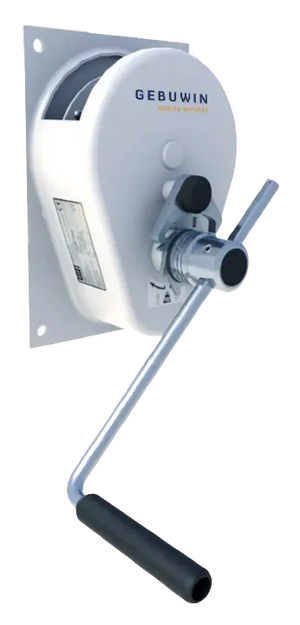

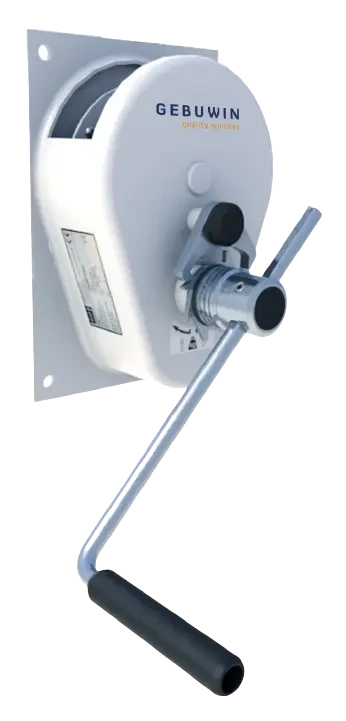

Gebuwin ATEX Spur Gear Hand Winch 600kg

This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.

  • robust and safe lifting winch in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards
  • adjustable crank
  • suitable for wall mounting
  • 1 layer of paint

Spec

Capacity 1st layer

600 kg

Capacity 4th layer

408 kg

Capacity top layer

336 kg

Rope diameter-Ø

6 mm

Rope storage 1st layer

1 meter

Rope storage 4th layer

7 meter

Rope storage top layer

12,3 meter

Lift per crank rotation

28 mm

Crank effort at full load

10 daN

Weight (without rope)

11 kg



Downloads

Gebuwin ATEX Spur Gear Hand Winch 600kg

This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.

  • robust and safe lifting winch in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards
  • adjustable crank
  • suitable for wall mounting
  • 1 layer of paint

Spec

Capacity 1st layer

600 kg

Capacity 4th layer

408 kg

Capacity top layer

336 kg

Rope diameter-Ø

6 mm

Rope storage 1st layer

1 meter

Rope storage 4th layer

7 meter

Rope storage top layer

12,3 meter

Lift per crank rotation

28 mm

Crank effort at full load

10 daN

Weight (without rope)

11 kg



Downloads
