Product Information

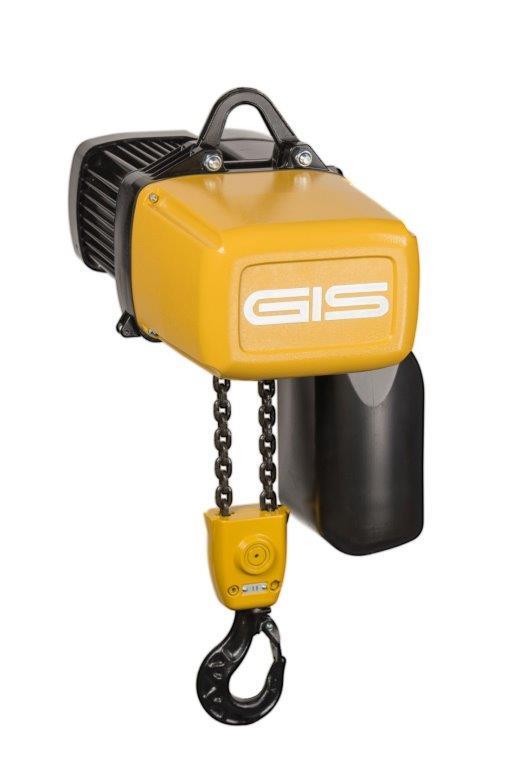

GIS GP500/2NF ELECTRIC CHAIN HOIST WITH HOOK SUSPENSION - MAX 1250kg SWL

OVERVIEW

  • Manufactured in Switzerland
  • Reliable and long-lasting
  • 3 year warranty
  • Short delivery time, normally 1 to 3 working days from order date
  • GP500/2NF with a double fall of load chain can be set to a safe working load (SWL) of 500kg, 630kg, 800kg, 1000kg or to a maximum of 1250kg.
  • Optionally available with a Manual or Electric Travel Trolley - email sales@riigginguk.co.uk for more information or a formal quotation.

PRODUCT CHARACTERISTICS

  • Chain safety factor minimum 8-times (1-fall in FEM, 2m, ISO, M5)
  • Twin hoisting speed as standard, single speed available
  • Manganese phosphated profile steel chain with increased service life and improved dry-running properties
  • Gearbox with permanent lubrication
  • High safety in operation
  • Low-wear DC-spring-loaded brake
  • No sensitive electronics used
  • Aluminium casing and cover Minimum 1,600 operating hours with 40% duty cycle, 240 s/h (FEM: 2m, ISO M5)
  • Dry-running slipping clutch
  • Area of application -15° to +50°C
  • Eyebolt or hook suspension Lifting heights up to 200 m
  • Easy to operate
  • Low dead weight from 14 kg
  • Compact housing with low headroom
  • Protection class IP65; hoist suitable for outdoor use with additional features like weather cover or parking kennel
  • Geared limit switches with high accuracy in positioning of the highest and lowest hook position
  • Ergonomic control switch with emergency stop
  • 42 V low voltage control
  • Quiet running with 3-step drive and helical gearing
  • Load hook rotated through 360 degrees, with locking safety catch and rubber buffer
  • No special tools for maintenance needed
  • Easy to maintain, wearing parts can be changed easily and quickly

 Customer Specific Options

  • Three- or single-phase power
  • Worldwide operation voltages
  • Various control voltages
  • Direct control, special control, radio remote control, frequency inverter
  • Special hoisting speeds
  • Special versions such as synchronised electric chain hoist, low headroom version, corrosion resistant version, ATEX
  • Hook path with upper and lower end position individually adjustable
  • Temperature monitoring
  • Operating data counter
  • Wide range of accessories and options

    GIS GP500/2NF ELECTRIC CHAIN HOIST WITH HOOK SUSPENSION - MAX 1250kg SWL

    OVERVIEW

    • Manufactured in Switzerland
    • Reliable and long-lasting
    • 3 year warranty
    • Short delivery time, normally 1 to 3 working days from order date
    • GP500/2NF with a double fall of load chain can be set to a safe working load (SWL) of 500kg, 630kg, 800kg, 1000kg or to a maximum of 1250kg.
    • Optionally available with a Manual or Electric Travel Trolley - email sales@riigginguk.co.uk for more information or a formal quotation.

    PRODUCT CHARACTERISTICS

    • Chain safety factor minimum 8-times (1-fall in FEM, 2m, ISO, M5)
    • Twin hoisting speed as standard, single speed available
    • Manganese phosphated profile steel chain with increased service life and improved dry-running properties
    • Gearbox with permanent lubrication
    • High safety in operation
    • Low-wear DC-spring-loaded brake
    • No sensitive electronics used
    • Aluminium casing and cover Minimum 1,600 operating hours with 40% duty cycle, 240 s/h (FEM: 2m, ISO M5)
    • Dry-running slipping clutch
    • Area of application -15° to +50°C
    • Eyebolt or hook suspension Lifting heights up to 200 m
    • Easy to operate
    • Low dead weight from 14 kg
    • Compact housing with low headroom
    • Protection class IP65; hoist suitable for outdoor use with additional features like weather cover or parking kennel
    • Geared limit switches with high accuracy in positioning of the highest and lowest hook position
    • Ergonomic control switch with emergency stop
    • 42 V low voltage control
    • Quiet running with 3-step drive and helical gearing
    • Load hook rotated through 360 degrees, with locking safety catch and rubber buffer
    • No special tools for maintenance needed
    • Easy to maintain, wearing parts can be changed easily and quickly

     Customer Specific Options

    • Three- or single-phase power
    • Worldwide operation voltages
    • Various control voltages
    • Direct control, special control, radio remote control, frequency inverter
    • Special hoisting speeds
    • Special versions such as synchronised electric chain hoist, low headroom version, corrosion resistant version, ATEX
    • Hook path with upper and lower end position individually adjustable
    • Temperature monitoring
    • Operating data counter
    • Wide range of accessories and options
