Product Information

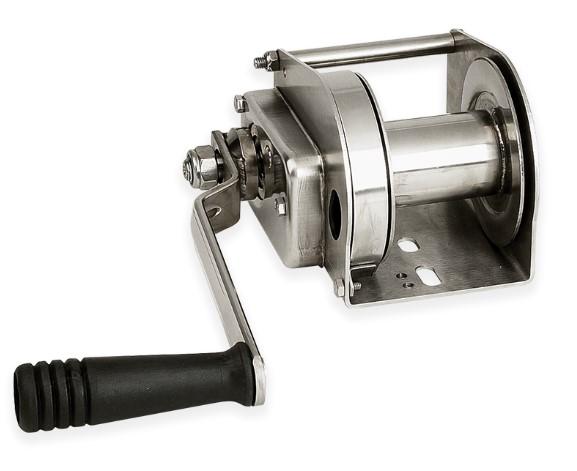

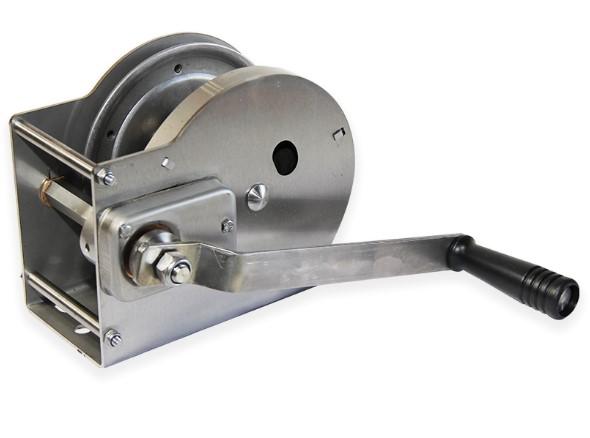

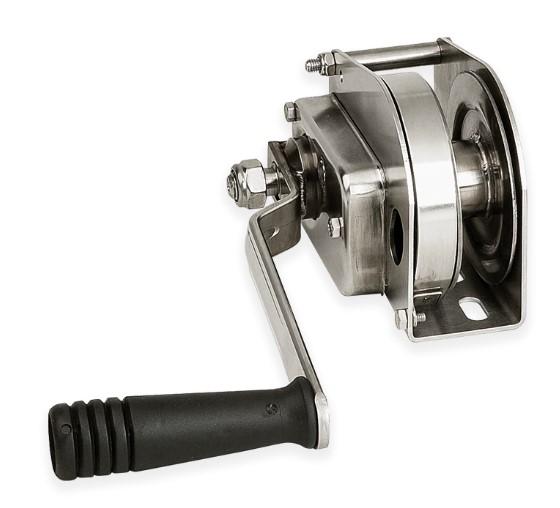

AFID - Goliath Stainless Steel (316L) Hand Winch

Lifting capacity 190 kg to 900 kg

Stainless Steel 316L material, ideal for marine and other outdoor applications in corrosive environments.

Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate. (note winch plate is zinc plated finish only)

Lightweight
Smooth running, high efficiency through spur gearing
Automatic load pressure brake
Stamped gears with gear protection
Complies with BS EN 13157

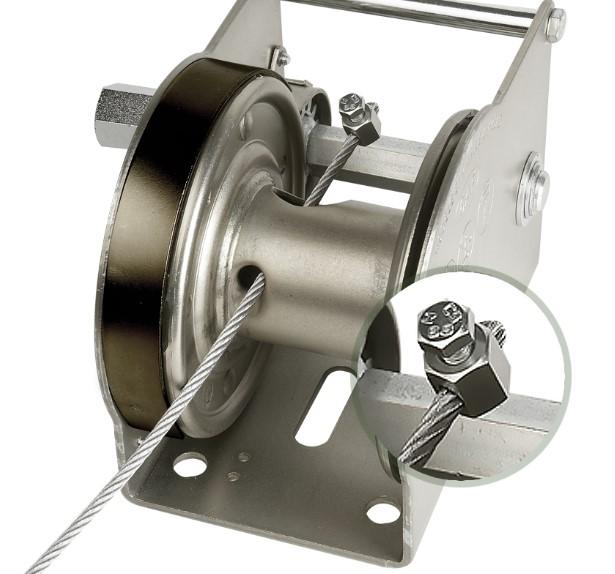

For use with wire rope (available as extra cost option - sales@rigginguk.co.uk)
Haulage load capacity based on 20% incline
Minimum load for the brake to function = 10kg

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch

 Spec

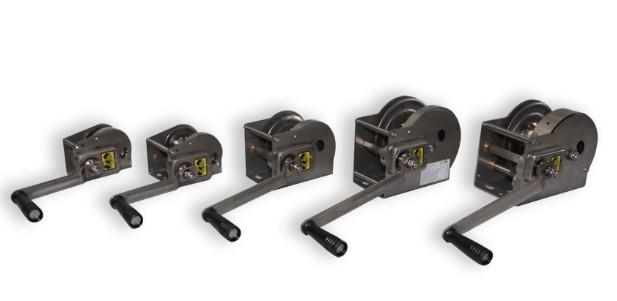

 Type    GO-4AFMID-190 GO-4AFID-340 GO-6AFID-500 GO-8AFID-650 GO-12AFID-900
Order Code 151-5-1 151-5-2 151-5-3 151-5-4 151-5-5
Lifting Capacity 1st Layer:  KG 190 Kg 340 Kg 500 Kg 650 Kg 900 Kg
Lifting Capacity Last Layer: KG 80 Kg 190 Kg 240 Kg 270 Kg 490 Kg
Haulage Capacity:  KG 350 Kg 500 Kg 750 Kg 900 Kg 1500 Kg
Rope Capacity 1st Layer: M 1 m 2 m 2 m 2 m 2 m
Rope Capacity Total: M 8 m 10 m 12 m 19 m 12 m
Rope Diameter:  MM 3 mm 4 mm 5 mm 6 mm 7 mm
No. of Layers: N/A 8 4 5 7 5
Ratio: N/A 2.57:1 2.57:1 3.5:1 4.85:1 9.71:1
Required Effort: N/A 15 N 24 N 24 N 23 N 25 N
Weight:  KG 2.2 2.8 4.4 5.2 7.6

PF53417-C1 PF53418-C1 PF53619-C1 PF53824-C1 PF53119-C1

**As Standard supplied without Wire Rope or Webbing - Prices available on request**



Downloads

Goliath AFID Stainless winchProduct data sheet

Legislation

Material Certification for Stainless (316)

AFID - Goliath Stainless Steel (316L) Hand Winch

Lifting capacity 190 kg to 900 kg

Stainless Steel 316L material, ideal for marine and other outdoor applications in corrosive environments.

Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate. (note winch plate is zinc plated finish only)

Lightweight
Smooth running, high efficiency through spur gearing
Automatic load pressure brake
Stamped gears with gear protection
Complies with BS EN 13157
For use with wire rope (available as extra cost option - sales@rigginguk.co.uk)
Haulage load capacity based on 20% incline
Minimum load for the brake to function = 10kg

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch

 Spec

 Type    GO-4AFMID-190 GO-4AFID-340 GO-6AFID-500 GO-8AFID-650 GO-12AFID-900
Order Code 151-5-1 151-5-2 151-5-3 151-5-4 151-5-5
Lifting Capacity 1st Layer:  KG 190 Kg 340 Kg 500 Kg 650 Kg 900 Kg
Lifting Capacity Last Layer: KG 80 Kg 190 Kg 240 Kg 270 Kg 490 Kg
Haulage Capacity:  KG 350 Kg 500 Kg 750 Kg 900 Kg 1500 Kg
Rope Capacity 1st Layer: M 1 m 2 m 2 m 2 m 2 m
Rope Capacity Total: M 8 m 10 m 12 m 19 m 12 m
Rope Diameter:  MM 3 mm 4 mm 5 mm 6 mm 7 mm
No. of Layers: N/A 8 4 5 7 5
Ratio: N/A 2.57:1 2.57:1 3.5:1 4.85:1 9.71:1
Required Effort: N/A 15 N 24 N 24 N 23 N 25 N
Weight:  KG 2.2 2.8 4.4 5.2 7.6

PF53417-C1 PF53418-C1 PF53619-C1 PF53824-C1 PF53119-C1

**As Standard supplied without Wire Rope or Webbing - Prices available on request**



Downloads

Goliath AFID Stainless winchProduct data sheet

Legislation

Material Certification for Stainless (316)
