Product Information

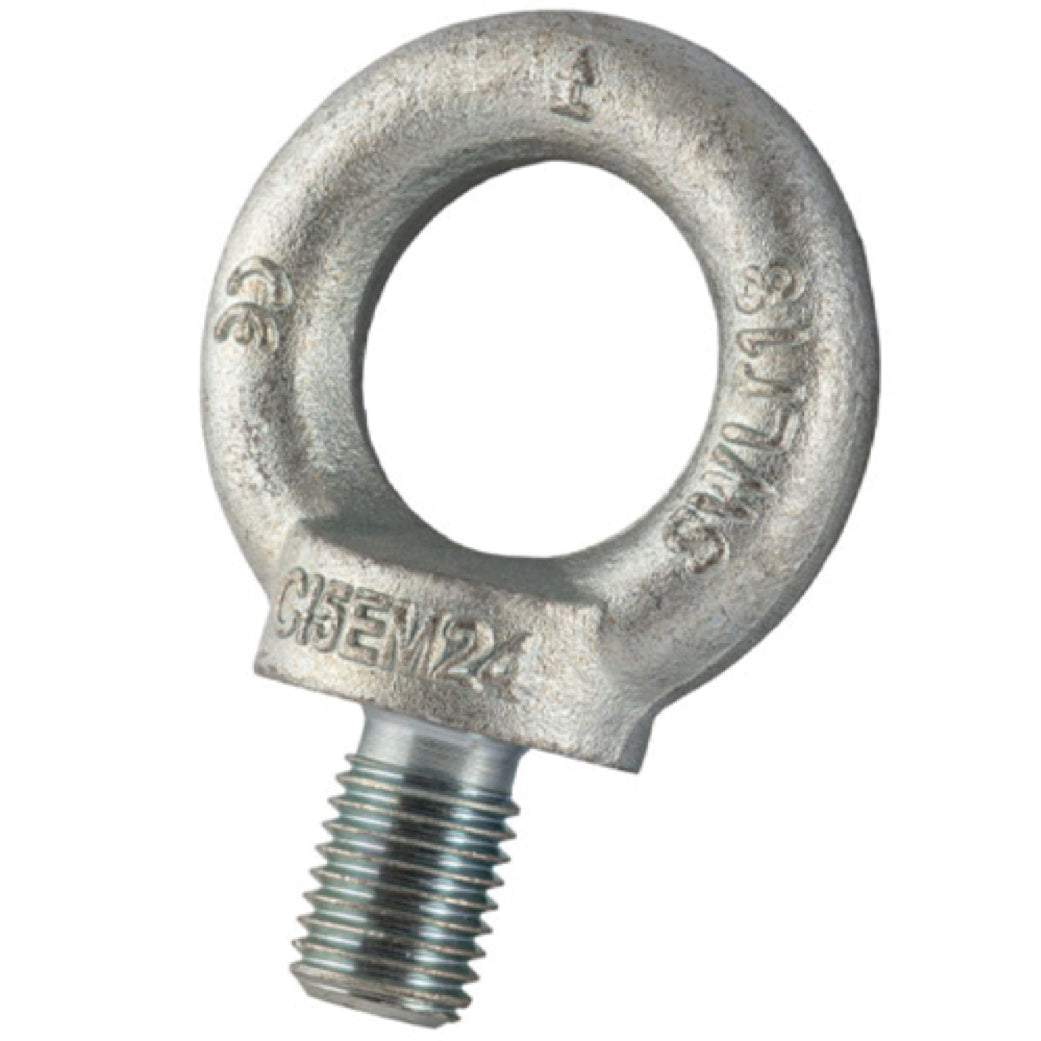

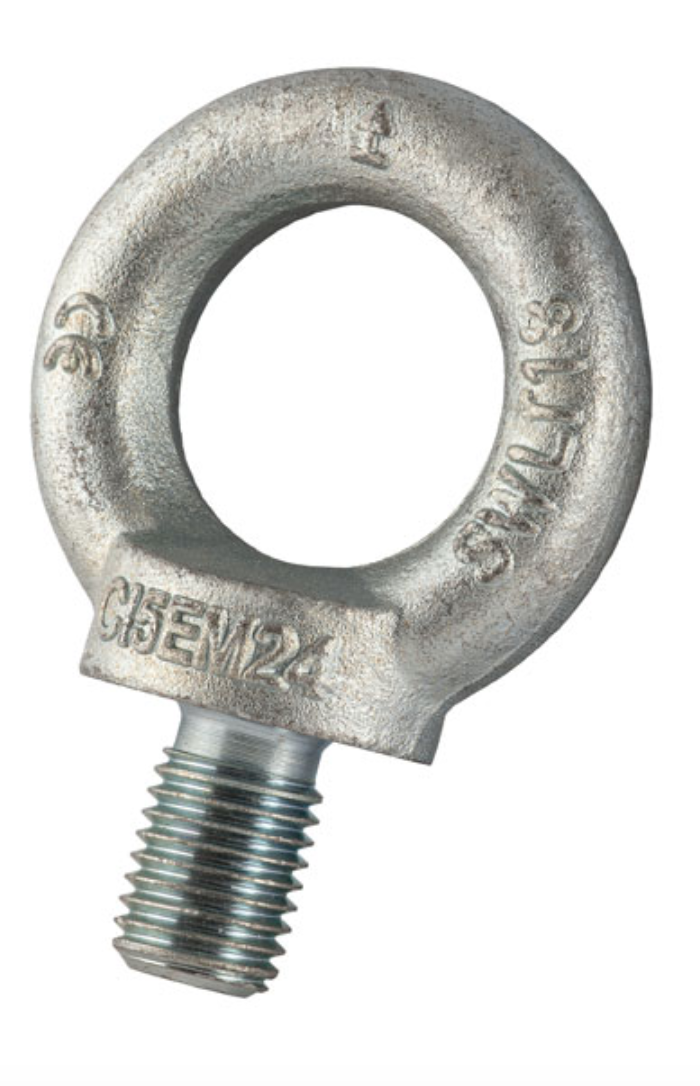

Mild Steel Electro Galvanised Eyebolt to DIN 580
  • Mild steel.
  • Self coloured and electro galvanised finish.
  • Meets the W.L.L. performance requirements of DIN 580.*
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, material, size and product ID mark.
  • For further clarification on reductions for non-axial loading, please consult RiggingUK.
  • Certification available



      Spec

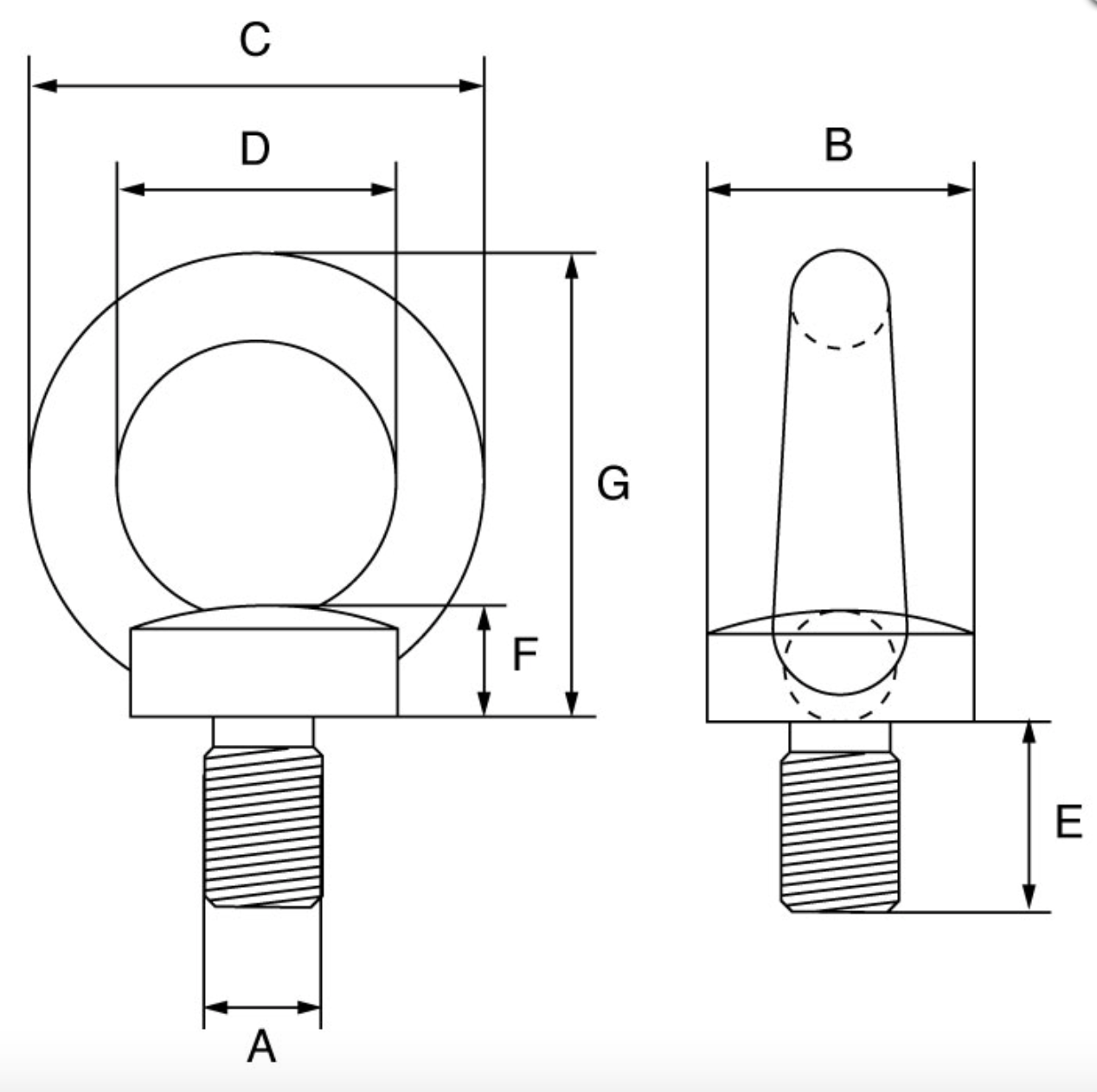

      SKU W.L.L. A B C D E F G Weight
      t mm mm mm mm mm mm mm kgs
      286-624-1 0.07 M6 20 36 20 13 6 36 0.05
      286-624-2 0.14 M8 20 36 20 13 6 36 0.07
      286-624-3 0.23 M10 25 45 25 17 8 45 0.11
      286-624-4 0.34 M12 30 54 30 20.5 10 53 0.18
      286-624-5 0.70 M16 35 63 35 27 12 62 0.28
      286-624-6 1.20 M20 40 72 40 30 14 71 0.45
      286-624-7 1.80 M24 50 90 50 36 18 90 0.87
      286-624-8 3.20 M30 65 108 60 45 22 109 1.66
      286-624-9 4.60 M36 75 126 70 54 26 128 2.65
      286-624-10 6.30 M42 85 144 80 63 30 147 4.03
      286-624-11 8.6 M48 100 166 90 68 35 168 6.32

       Downloads

      Mild Steel Electro Galvanised Eyebolt to DIN 580
      • Mild steel.
      • Self coloured and electro galvanised finish.
      • Meets the W.L.L. performance requirements of DIN 580.*
      • Minimum breaking load is 5 times the W.L.L.
      • Marked with CE, W.L.L, material, size and product ID mark.
      • For further clarification on reductions for non-axial loading, please consult RiggingUK.
      • Certification available



          Spec

          SKU W.L.L. A B C D E F G Weight
          t mm mm mm mm mm mm mm kgs
          286-624-1 0.07 M6 20 36 20 13 6 36 0.05
          286-624-2 0.14 M8 20 36 20 13 6 36 0.07
          286-624-3 0.23 M10 25 45 25 17 8 45 0.11
          286-624-4 0.34 M12 30 54 30 20.5 10 53 0.18
          286-624-5 0.70 M16 35 63 35 27 12 62 0.28
          286-624-6 1.20 M20 40 72 40 30 14 71 0.45
          286-624-7 1.80 M24 50 90 50 36 18 90 0.87
          286-624-8 3.20 M30 65 108 60 45 22 109 1.66
          286-624-9 4.60 M36 75 126 70 54 26 128 2.65
          286-624-10 6.30 M42 85 144 80 63 30 147 4.03
          286-624-11 8.6 M48 100 166 90 68 35 168 6.32
