Product Information

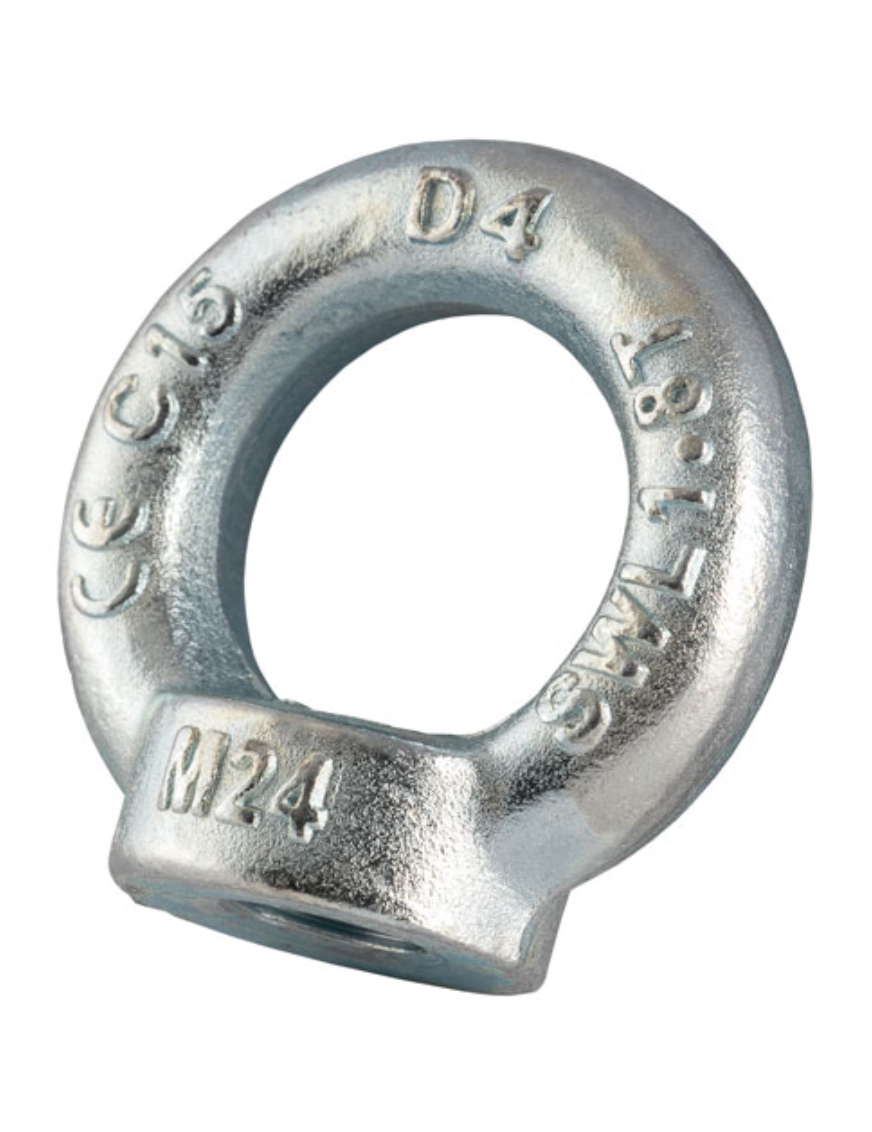

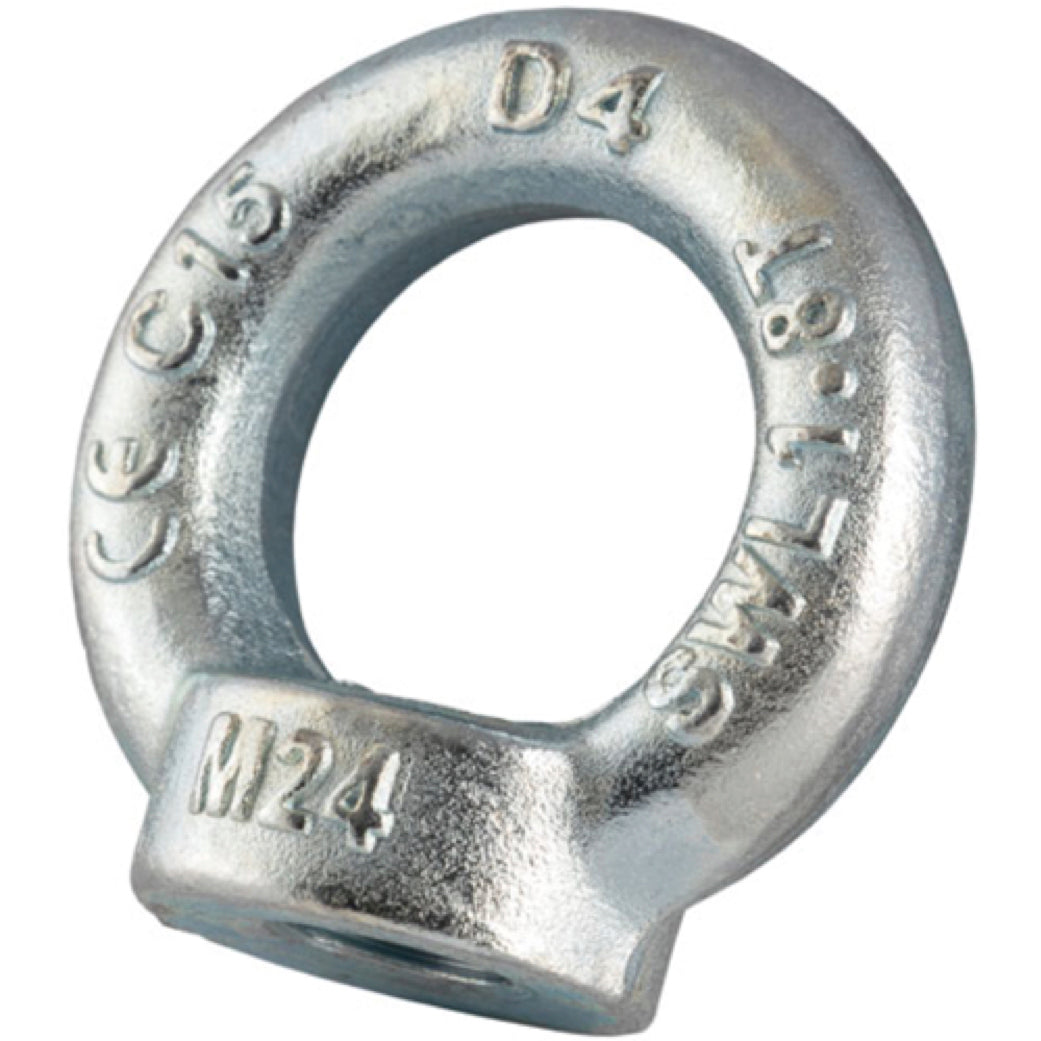

Mild Steel Electro Galvanised Eyenut to DIN 582
  • Mild steel.
  • Self coloured and electro galvanised finish.
  • Meets the W.L.L. requirements of DIN 582.*
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, material, size and product ID mark.
  • For further clarification on reductions for non-axial loading, please consult RiggingUK.
  • Certification available



      Spec

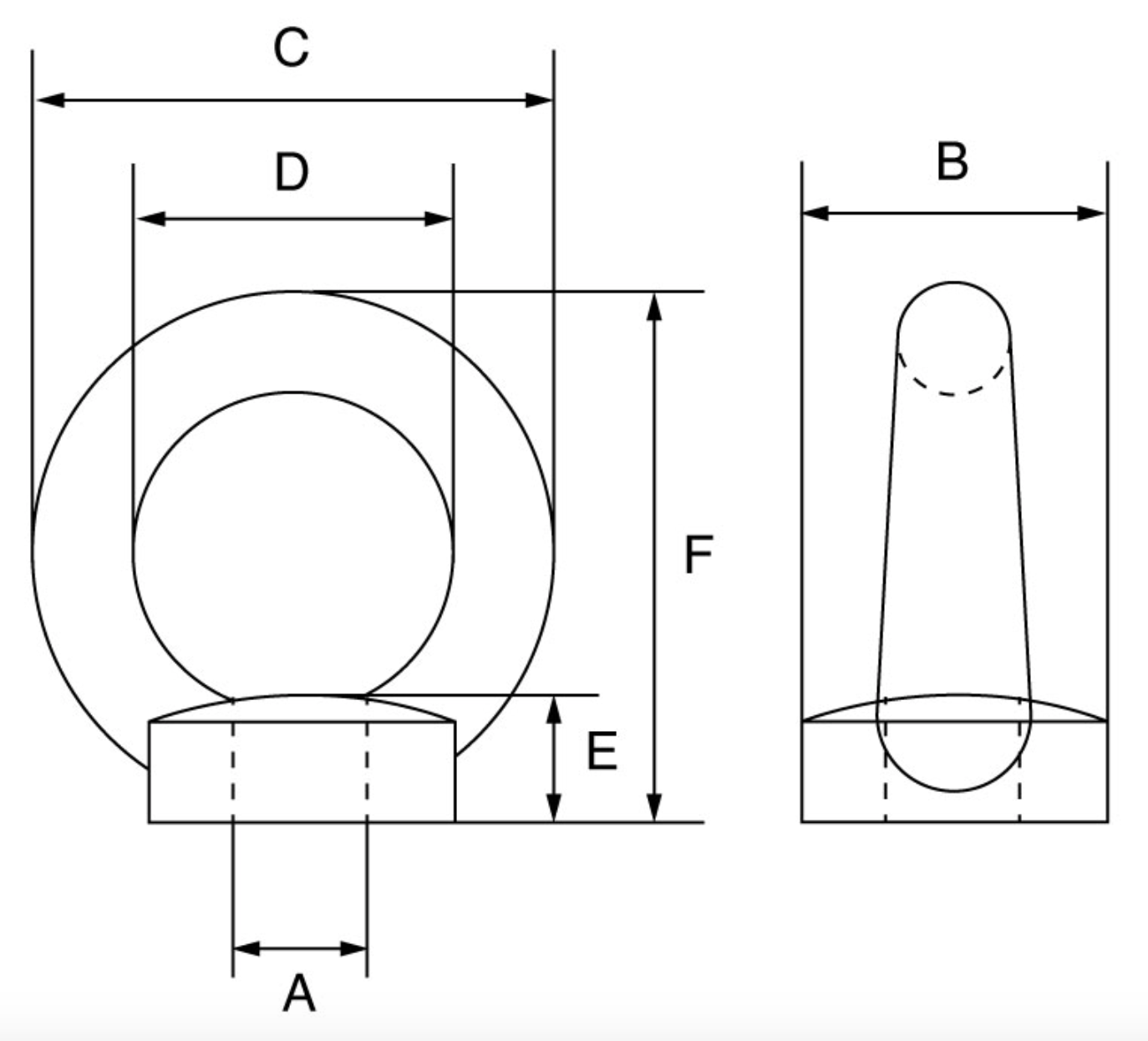

      SKU W.L.L. A B C D E F Weight
      t mm mm mm mm mm mm kgs
      286-627-1 0.07 M6 20 36 20 8.5 36 0.05
      286-627-2 0.14 M8 20 36 20 8.5 36 0.05
      286-627-3 0.23 M10 25 45 25 10 45 0.1
      286-627-4 0.34 M12 30 54 30 11 53 0.16
      286-627-X 0.49 M14 35 63 35 13 60 0.22
      286-627-5 0.7 M16 35 63 35 13 62 0.24
      286-627-6 1.2 M20 40 72 40 16 71 0.35
      286-627-7 1.8 M24 50 90 50 20 90 0.71
      286-627-8 3.2 M30 65 108 60 25 109 1.3
      286-627-9 4.6 M36 75 126 70 30 128 2.08

      Downloads

      Mild Steel Electro Galvanised Eyenut to DIN 582
      • Mild steel.
      • Self coloured and electro galvanised finish.
      • Meets the W.L.L. requirements of DIN 582.*
      • Minimum breaking load is 5 times the W.L.L.
      • Marked with CE, W.L.L, material, size and product ID mark.
      • For further clarification on reductions for non-axial loading, please consult RiggingUK.
      • Certification available



          Spec

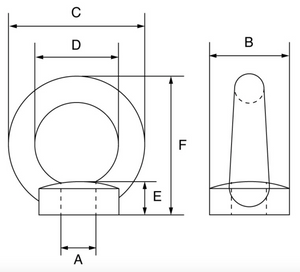

          SKU W.L.L. A B C D E F Weight
          t mm mm mm mm mm mm kgs
          286-627-1 0.07 M6 20 36 20 8.5 36 0.05
          286-627-2 0.14 M8 20 36 20 8.5 36 0.05
          286-627-3 0.23 M10 25 45 25 10 45 0.1
          286-627-4 0.34 M12 30 54 30 11 53 0.16
          286-627-X 0.49 M14 35 63 35 13 60 0.22
          286-627-5 0.7 M16 35 63 35 13 62 0.24
          286-627-6 1.2 M20 40 72 40 16 71 0.35
          286-627-7 1.8 M24 50 90 50 20 90 0.71
          286-627-8 3.2 M30 65 108 60 25 109 1.3
          286-627-9 4.6 M36 75 126 70 30 128 2.08

          Downloads
