Product Information

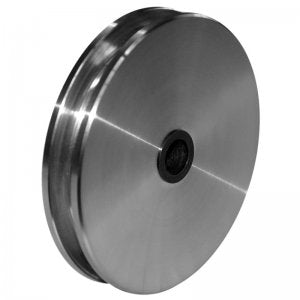

Stainless Steel Sheaves with Plastic Bushing (Model No. 1300)

Pulley / Sheave made of grade 1.4305 stainless steel, with maintenance-free plastic bushing (E10 tolerance bore).

Range of pulley capacity from 100kg up to 1500kg

Range of pulley diameter from 50mm up to 200mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date if not in stock in our UK warehouse.

Spec

SKU
182-1300-50 182-1300-75 182-1300-100
182-1300-125 182-1300-150 182-1300-200

 Sheave External Ø

mm

50

75 100 125 150 200

Groove Base Ø

mm

38 59 80 100 120 166

Groove Radius

mm

2.7 3.7 4.8 6 7 8

Groove Depth

mm

6 8 10 12 15 17

Rim Width

mm

12 18 22 22 27 28

Bore for Bolt

mm

10 12 16 16 20 30

Hub Length

mm

14 20 24 24 30 32
Hub Ø mm 18 20 24 24 28 42
Rope Ø max.
mm 5 7 9 11 13 15

Load Capacity (in kg).

kg

100 200 300 500 750 1500

Weight (in kg) approx.

kg

0.2 0.65 1.4 2.1 3.75 6.9
