Product Information

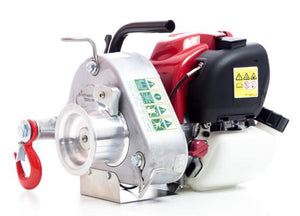

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

This winch is powered by Honda’s 4-stroke GX-35cc engine. In addition to being extremely popular with hunters looking for a lightweight, compact tool, this model is also appreciated by occasional loggers.

Weighing only 9,5 kg, it offers 700 kg of pulling power single line. EFFICIENT and very easy to carry, you’ll be equipped to retrieve your game, no matter the conditions.

Use the PCW3000 Portable Capstan Winch with any length of 10 mm double braided polyester low stretch rope!

It is so easy to use! The rope is tied to the object to be moved and wound three (or four) times around the capstan drum. When the engine is running, the capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object.

Portable Winch Co. also offers a range of transport accessories in order to facilitate your movements, even over long distances! Whether you use the moulded case (PCA-0102*) attached to the backpack (PCA-0104*) or strapped onto your off-road vehicle, your outing in the woods will be enhanced.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001970



PCW5000 Petrol Pulling Winch 1000kg Ref: 167-2-1

Perfect for pulling heavy loads!

Powered by the HONDA 4-stroke GXH-50 cc engine, this winch is designed for heavy loads.

Weighing just 16 kg, it offers a pulling force of 1000 kg.

In addition, there are two speed options thanks to the interchangeable capstan drums. If you opt for POWER, choose the 57 mm drum pulling at a speed of 12 meters per minute. If your situation calls for SPEED, choose the 85 mm* drum pulling at a speed of 18 meters per minute.

The PCW5000 portable capstan winch can be used with any length of double-braid polyester rope with a 12 mm diameter and with all Portable Winch equipment and accessories.

This winch will be your ally for many years to come.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

 GTIN / EAN13: 690581000010



PCW5000 Petrol Pulling Winch 350kg Ref:167-2-3

For when you need speed!

The high-speed version of the PCW5000.

It has been specially designed to install fibre optic cable. Powered by a Honda GXH-50 cc 4-stroke engine, this model can pull 350 kg at a speed of 35 meters per minute with its 85 mm diameter drum.

That’s twice the speed of the PCW5000!

It can be used with any length of double-braid polyester rope with a 10 or 12 mm diameter and with all Portable Winch equipment and accessories.
An unrivalled partner on all work sites!

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001802

Spec

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

Manufacturer PORTABLE WINCH
Max Pull Capacity 700kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 76mm
Speed with Installed Capstan 10 m/min
Rope Size Min 10mm | Max 16mm | Ideal 10mm
Engine/Motor Honda 4-stroke GX-35 cc
Gear Ratio 200:1
Dry Weight 9.5kg
GTIN / EAN13 690581001970



PCW5000 Petrol Pulling Winch 1000kg Ref: 167-2-2

Manufacturer PORTABLE WINCH
Max Pull Capacity 1000kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 57mm (Optional 85mm Drum Available - Reduces Capacity)
Speed with Installed Capstan 12 m/min
Rope Size Min 10mm | Max 16mm | Ideal 12mm
Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 110:1
Dry Weight 16kg
GTIN / EAN13 690581000010

PCW5000 Petrol Pulling Winch 350kg Ref: 167-2-3

Manufacturer PORTABLE WINCH
Max Pull Capacity 350kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 85mm (Optional 57mm Drum Available - Increases Capacity)
Speed with Installed Capstan 36 m/min
Rope Size Min 10mm | Max 16mm | Ideal 12mm
Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 53:1
Dry Weight 16kg
GTIN / EAN13: 690581001802

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

This winch is powered by Honda’s 4-stroke GX-35cc engine. In addition to being extremely popular with hunters looking for a lightweight, compact tool, this model is also appreciated by occasional loggers.

Weighing only 9,5 kg, it offers 700 kg of pulling power single line. EFFICIENT and very easy to carry, you’ll be equipped to retrieve your game, no matter the conditions.

Use the PCW3000 Portable Capstan Winch with any length of 10 mm double braided polyester low stretch rope!

It is so easy to use! The rope is tied to the object to be moved and wound three (or four) times around the capstan drum. When the engine is running, the capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object.

Portable Winch Co. also offers a range of transport accessories in order to facilitate your movements, even over long distances! Whether you use the moulded case (PCA-0102*) attached to the backpack (PCA-0104*) or strapped onto your off-road vehicle, your outing in the woods will be enhanced.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001970



PCW5000 Petrol Pulling Winch 1000kg Ref: 167-2-1

Perfect for pulling heavy loads!

Powered by the HONDA 4-stroke GXH-50 cc engine, this winch is designed for heavy loads.

Weighing just 16 kg, it offers a pulling force of 1000 kg.

In addition, there are two speed options thanks to the interchangeable capstan drums. If you opt for POWER, choose the 57 mm drum pulling at a speed of 12 meters per minute. If your situation calls for SPEED, choose the 85 mm* drum pulling at a speed of 18 meters per minute.

The PCW5000 portable capstan winch can be used with any length of double-braid polyester rope with a 12 mm diameter and with all Portable Winch equipment and accessories.

This winch will be your ally for many years to come.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

 GTIN / EAN13: 690581000010



PCW5000 Petrol Pulling Winch 350kg Ref:167-2-3

For when you need speed!

The high-speed version of the PCW5000.

It has been specially designed to install fibre optic cable. Powered by a Honda GXH-50 cc 4-stroke engine, this model can pull 350 kg at a speed of 35 meters per minute with its 85 mm diameter drum.

That’s twice the speed of the PCW5000!

It can be used with any length of double-braid polyester rope with a 10 or 12 mm diameter and with all Portable Winch equipment and accessories.
An unrivalled partner on all work sites!

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001802

Spec

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

Manufacturer PORTABLE WINCH
Max Pull Capacity 700kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 76mm
Speed with Installed Capstan 10 m/min
Rope Size Min 10mm | Max 16mm | Ideal 10mm
Engine/Motor Honda 4-stroke GX-35 cc
Gear Ratio 200:1
Dry Weight 9.5kg
GTIN / EAN13 690581001970



PCW5000 Petrol Pulling Winch 1000kg Ref: 167-2-2

Manufacturer PORTABLE WINCH
Max Pull Capacity 1000kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 57mm (Optional 85mm Drum Available - Reduces Capacity)
Speed with Installed Capstan 12 m/min
Rope Size Min 10mm | Max 16mm | Ideal 12mm
Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 110:1
Dry Weight 16kg
GTIN / EAN13 690581000010

PCW5000 Petrol Pulling Winch 350kg Ref: 167-2-3

Manufacturer PORTABLE WINCH
Max Pull Capacity 350kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 85mm (Optional 57mm Drum Available - Increases Capacity)
Speed with Installed Capstan 36 m/min
Rope Size Min 10mm | Max 16mm | Ideal 12mm
Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 53:1
Dry Weight 16kg
GTIN / EAN13: 690581001802
