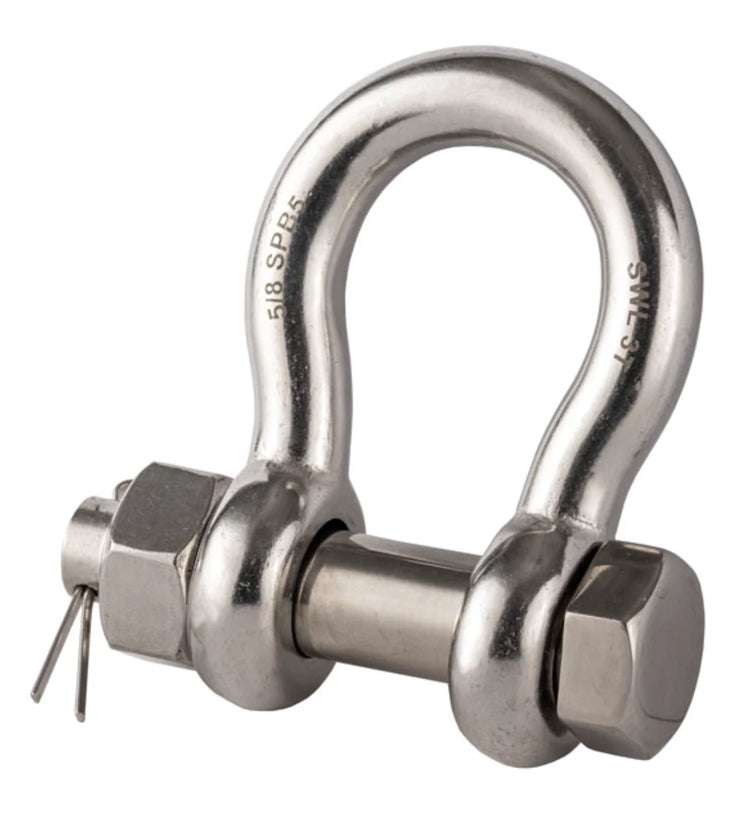

Stainless Steel Load Rated Safety Nut and Bolt Pin Bow Shackle

  • AISI 316 stainless steel.
  • Polished finish.
  • Marked with CE, W.L.L, size and traceability code.
  • Certification available

    Spec

    SKU W.L.L. A B C D Weight
    t inch inch mm mm kgs
    286-1203-1 0.75 5/16 3/8 13.5 31 0.07
    286-1203-2 1 3/8 7/16 16.8 36.6 0.13
    286-1203-3 2 1/2 5/8 20.6 47.8 0.28
    286-1203-4 3 5/8 3/4 26.9 60.5 0.55
    286-1203-5 4 3/4 7/8 31.8 71.4 0.93
    286-1203-6 5 7/8 1 36.6 84.1 1.38
    286-1203-7 6 1 1 1/8 42.9 95.3 1.99
