Product Information

The name of this winch indicates that it belongs to the robust winches which are often used in the environment of salt water, such as the marine and offshore industry.

This stainless steel winch, with its IP54 standard, is resistant to splashing water and dust on the inside.

The winch is constructed mainly of stainless steel 316 (body, drum, crank and all outgoing parts), which gives it a robust appearance. The winch is therefore certainly resistant to the toughest conditions and has a very high corrosion resistance rating.



Note: These are not a stocked item, so lead-time from order point is approx. 3 to 4 weeks but would be confirmed on order. Please email your enquiry for these models to sales@rigginguk.co.uk

Spec

  • Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
  • Static safety factor 4:1
  • Two lifting speeds (3t and 5t only)
  • Right angled, easy to grease worm transmission and maintenance free bearings
  • Load pressure brake with double ratchet system for safe stable hold of the load
  • Closed gearbox to protect against environmental influence – protection classification IP54
  • Cable outlet upwards, downwards or at rear

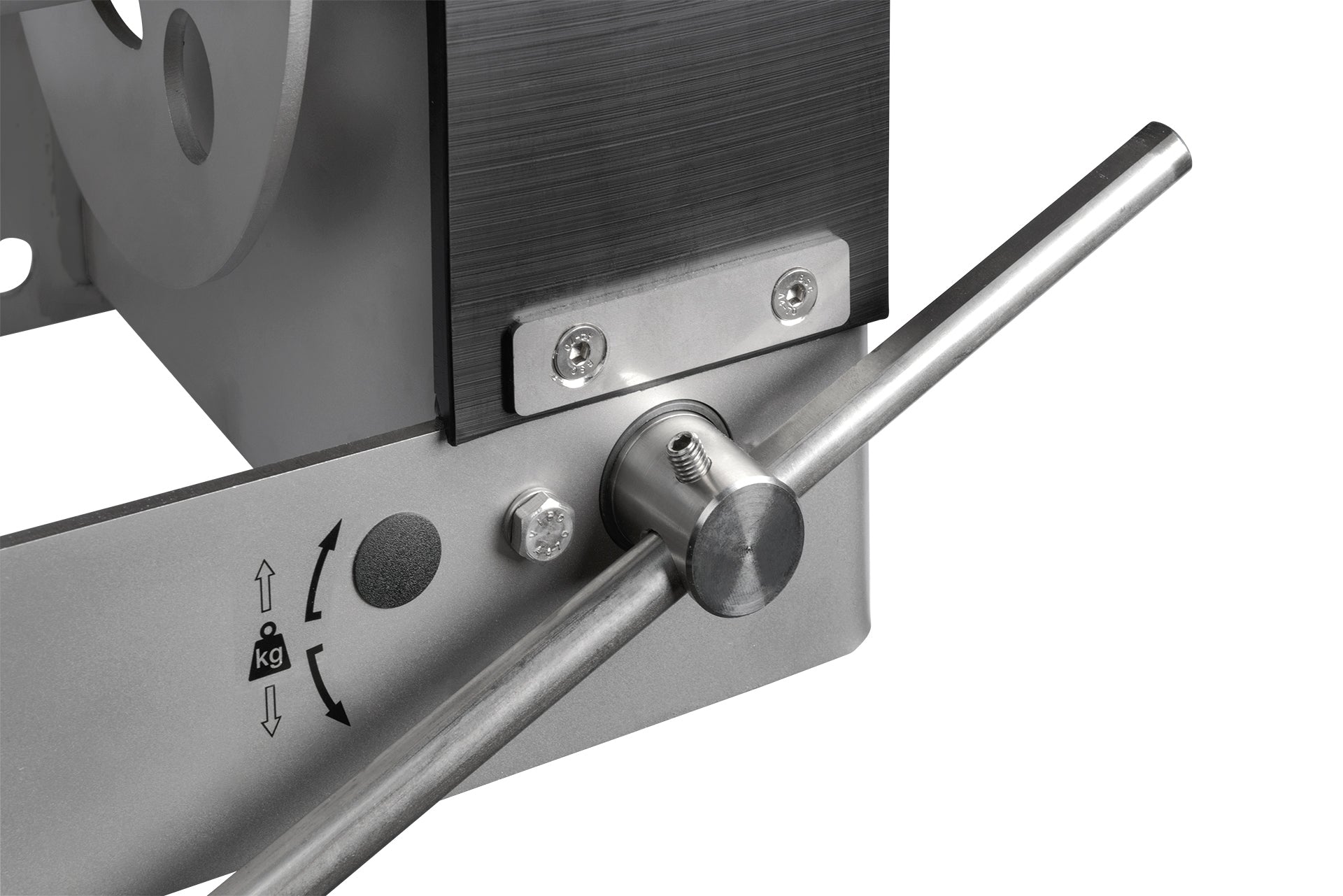

  • Adjustable crank, with ergonomic grip
  • Suitable for wall and floor mounting
  • Large rope capacity
  • Simple and quick attachment
  • Full stainless steel 316 body, drum, crank and all outgoing parts
  • Corrosion resistant

Tech Area



Capacity 1st layer

3000 kg

Capacity 4th layer

2066 kg

Capacity top layer

1711 kg

Rope diameter-Ø

16 mm

Rope storage 1st layer

5,2 meter

Rope storage 4th layer

30,8 meter

Rope storage top layer

41,9 meter

Lift per crank rotation

11 (5) mm

Crank effort at full load

31 (14) daN

Weight (without rope)

104 kg

Cable JacksData sheet


The name of this winch indicates that it belongs to the robust winches which are often used in the environment of salt water, such as the marine and offshore industry.

This stainless steel winch, with its IP54 standard, is resistant to splashing water and dust on the inside.

The winch is constructed mainly of stainless steel 316 (body, drum, crank and all outgoing parts), which gives it a robust appearance. The winch is therefore certainly resistant to the toughest conditions and has a very high corrosion resistance rating.



Note: These are not a stocked item, so lead-time from order point is approx. 3 to 4 weeks but would be confirmed on order. Please email your enquiry for these models to sales@rigginguk.co.uk

Spec

  • Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
  • Static safety factor 4:1
  • Two lifting speeds (3t and 5t only)
  • Right angled, easy to grease worm transmission and maintenance free bearings
  • Load pressure brake with double ratchet system for safe stable hold of the load
  • Closed gearbox to protect against environmental influence – protection classification IP54
  • Cable outlet upwards, downwards or at rear
  • Adjustable crank, with ergonomic grip
  • Suitable for wall and floor mounting
  • Large rope capacity
  • Simple and quick attachment
  • Full stainless steel 316 body, drum, crank and all outgoing parts
  • Corrosion resistant

Tech Area



Capacity 1st layer

3000 kg

Capacity 4th layer

2066 kg

Capacity top layer

1711 kg

Rope diameter-Ø

16 mm

Rope storage 1st layer

5,2 meter

Rope storage 4th layer

30,8 meter

Rope storage top layer

41,9 meter

Lift per crank rotation

11 (5) mm

Crank effort at full load

31 (14) daN

Weight (without rope)

104 kg

Cable JacksData sheet


Gebuwin by Gebuwin

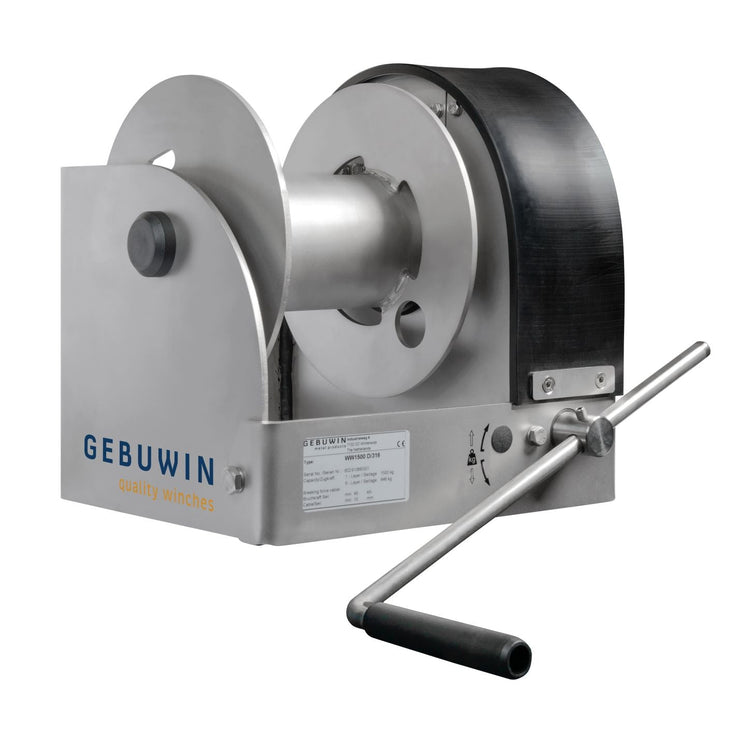

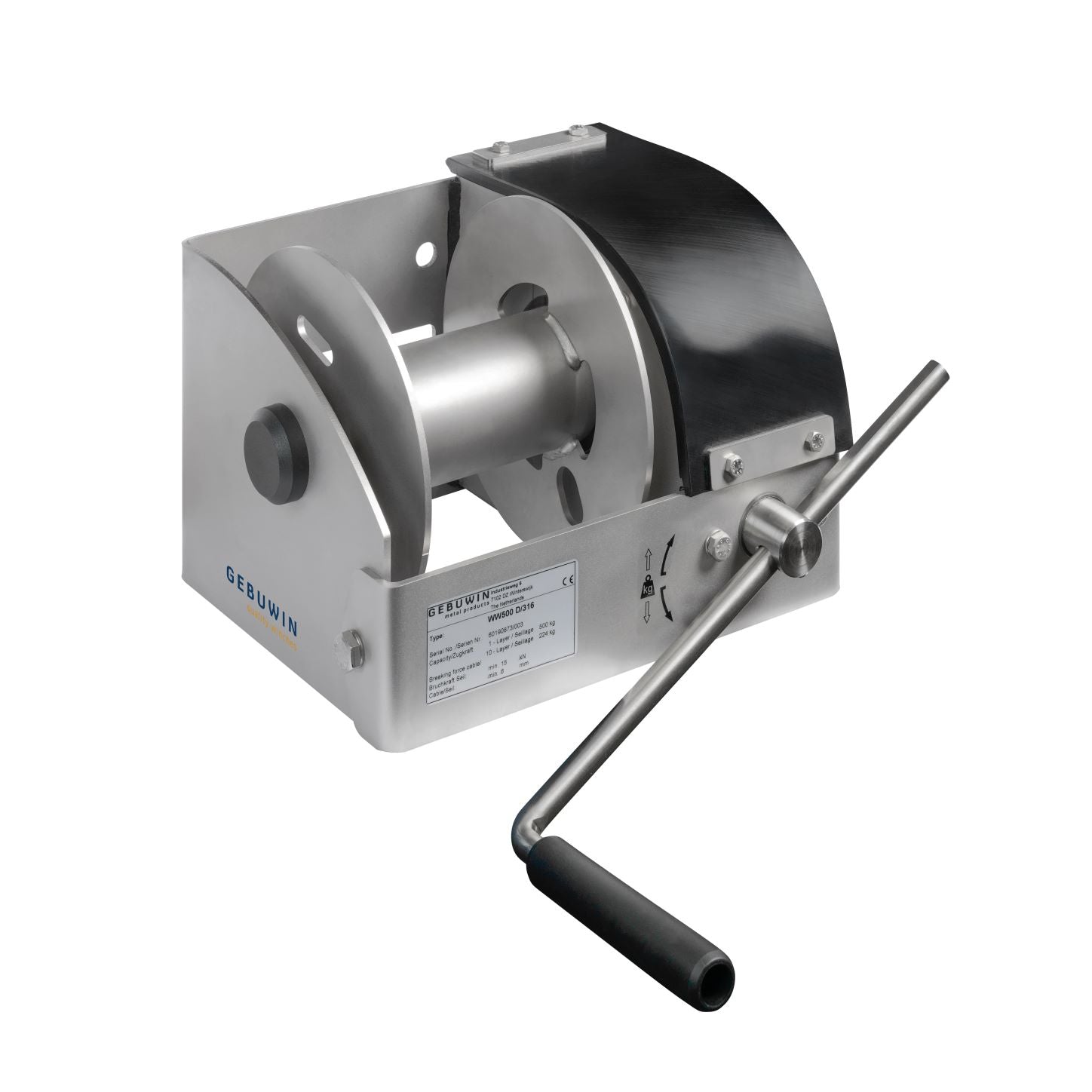

Stainless Steel Worm Gear Hand Winch 3000kg (MR3000 SST316)

Translation missing: en.products.product.sku:156-32-1

Option:

Need Help? If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to:

sales@orplexltd.co.uk
