Product Information

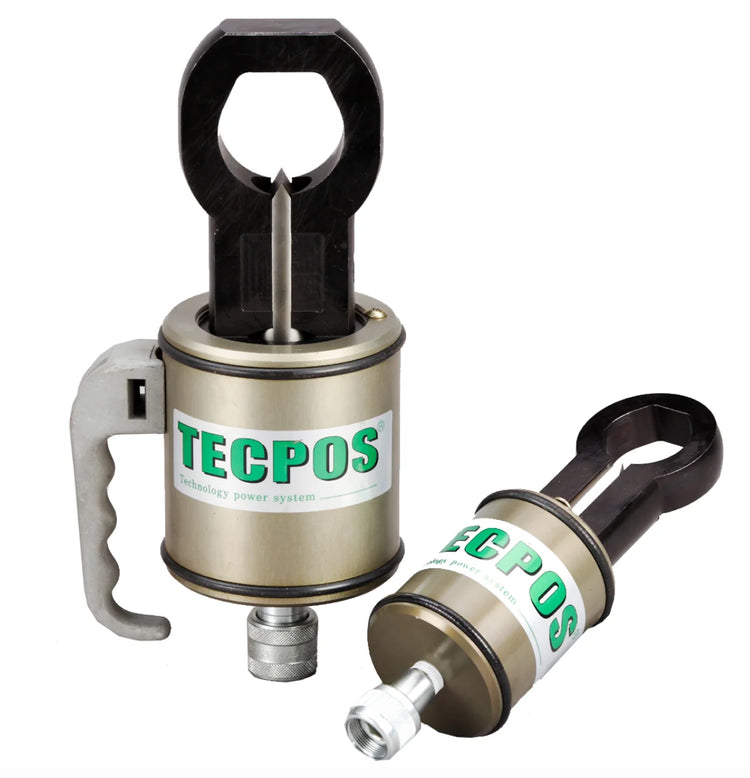

Tecpos Nut Splitter - TNS Series
  • Capacity: 14 & 32.5 tonnes.
  • Bolt range: 14 tonnes (M12 – M24), 32.5 tonnes (M20 – M33).
  • Maximum Pressure: 700 Bar.
  • Hydraulic Coupler: TBC 381F (PT3/8).
  • Certification available
  • Suits pump THPA1B


      Spec

      SKU Cylinder Capacity Stroke Cylinder effective Oil Capacity A max A min B C D E F G Weight Pump
      t mm cm(2) cc mm mm mm mm mm mm mm mm kgs
      286-709-1 14 15 41 26 45 15 12.5 73 221 23 62.5 78 5.2 1B or 1/3HP
      286-709-2 32.5 20 / 93 / / / / / / / / 12 1B



      Tecpos Nut Splitter - TNS Series
      • Capacity: 14 & 32.5 tonnes.
      • Bolt range: 14 tonnes (M12 – M24), 32.5 tonnes (M20 – M33).
      • Maximum Pressure: 700 Bar.
      • Hydraulic Coupler: TBC 381F (PT3/8).
      • Certification available
      • Suits pump THPA1B


          Spec

          SKU Cylinder Capacity Stroke Cylinder effective Oil Capacity A max A min B C D E F G Weight Pump
          t mm cm(2) cc mm mm mm mm mm mm mm mm kgs
          286-709-1 14 15 41 26 45 15 12.5 73 221 23 62.5 78 5.2 1B or 1/3HP
          286-709-2 32.5 20 / 93 / / / / / / / / 12 1B



          Tecpos by Tecpos

          Tecpos Nut Splitter

          286-709-1

          Capacity:
          Stroke/Oil Capacity:
