Product Information

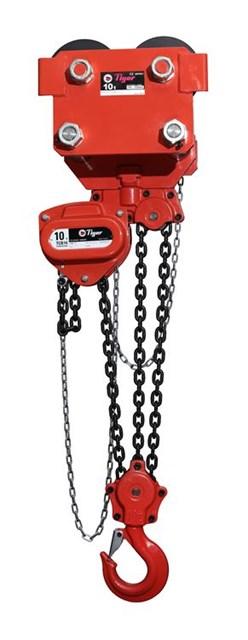

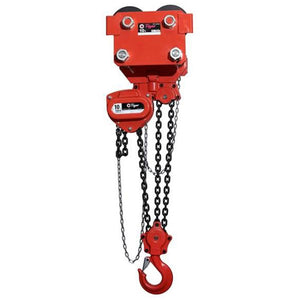

TIGER COMBINED CHAIN BLOCK & PUSH TRAVEL TROLLEY MODEL CCBTP, 2.0t CAPACITY BEAM WIDTH 112-230mm

  • 2.0t SWL Capacity, to suit a beam width range of 112-230mm (ref 230-9)
  • The CCBTP range is from 0.5t to 30.0t safe working load
  • Twin bar or single bar trolley options possible
  • The unit can be chained to any height of lift to meet your exact requirements
  • Ideal for locations where headroom is limited
  • Extended beam width available
  • Chain carrier available
  • Geared and plain trolley versions available
  • Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
  • Corrosion or Spark Resistant versions also available

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.



SINGLE BAR PLAIN COMBINATION UNITS

PRODUCT CODE CAPACITY (TONNE) D - TRACK WIDTH DIMENSIONS (MM) MIN. CURVE RATIO (M) NET WEIGHT (KG)
RANGE 1 (MM) RANGE 2 (MM) A B C H
CCBTPS-0050 0.5 62-128 62-203 195 106 106 310 0.8 16.0
CCBTPS-0100 1.0 62-128 62-203 213 113 113 350 1.0 19.5
CCBTPS-0200 2.0 88-154 88-230 236 136 136 450 1.3 33.0
CCBTPS-0300 3.0 88-153 88-230 281 146 146 530 1.5 48.5

      TWIN BAR PLAIN COMBINATION UNITS

      PRODUCT CODE CAPACITY (TONNE) D - TRACK WIDTH DIMENSIONS (MM) MIN. CURVE RATIO (M) NET WEIGHT (KG)
      RANGE 1 (MM) RANGE 2 (MM) A B C H
      CCBTPT-030T 3.0 88-153 88-230 320 142 142 435 1.5 45.5
      CCBTPT-0500 5.0 106-194 106-305 352 167 166 545 1.5 69.0
      CCBTPT-1000 10.0 150-320 N/A 460 255 255 730 2.7 185.0

      TIGER COMBINED CHAIN BLOCK & PUSH TRAVEL TROLLEY MODEL CCBTP, 2.0t CAPACITY BEAM WIDTH 112-230mm

      • 2.0t SWL Capacity, to suit a beam width range of 112-230mm (ref 230-9)
      • The CCBTP range is from 0.5t to 30.0t safe working load
      • Twin bar or single bar trolley options possible
      • The unit can be chained to any height of lift to meet your exact requirements
      • Ideal for locations where headroom is limited
      • Extended beam width available
      • Chain carrier available
      • Geared and plain trolley versions available
      • Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
      • Corrosion or Spark Resistant versions also available

      Certification

      Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

      Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.



      SINGLE BAR PLAIN COMBINATION UNITS

      PRODUCT CODE CAPACITY (TONNE) D - TRACK WIDTH DIMENSIONS (MM) MIN. CURVE RATIO (M) NET WEIGHT (KG)
      RANGE 1 (MM) RANGE 2 (MM) A B C H
      CCBTPS-0050 0.5 62-128 62-203 195 106 106 310 0.8 16.0
      CCBTPS-0100 1.0 62-128 62-203 213 113 113 350 1.0 19.5
      CCBTPS-0200 2.0 88-154 88-230 236 136 136 450 1.3 33.0
      CCBTPS-0300 3.0 88-153 88-230 281 146 146 530 1.5 48.5

          TWIN BAR PLAIN COMBINATION UNITS

          PRODUCT CODE CAPACITY (TONNE) D - TRACK WIDTH DIMENSIONS (MM) MIN. CURVE RATIO (M) NET WEIGHT (KG)
          RANGE 1 (MM) RANGE 2 (MM) A B C H
          CCBTPT-030T 3.0 88-153 88-230 320 142 142 435 1.5 45.5
          CCBTPT-0500 5.0 106-194 106-305 352 167 166 545 1.5 69.0
          CCBTPT-1000 10.0 150-320 N/A 460 255 255 730 2.7 185.0
