Product Information

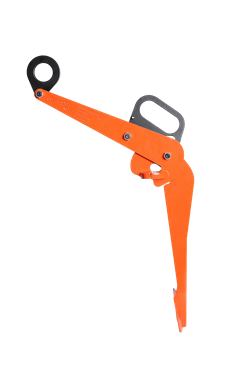

TIGER VERTICAL DRUM CLAMP - CDV Ref: 240-7

 Features and benefits:

  • Lightweight design for easy handling in tight spaces between other drums
  • Tough quality heavy duty welded shell body
  • Equipped with a manual safety lock mechanism so that the clamp is locked in the open position
  • Maintenance-friendly, easy to exchange parts which are available upon request



Product Code

Capacity (tonne)

Dimensions (mm)

Net Weight (kg)

SKU

U

 (mm)

S

(mm)

V

(mm)

T

(mm)

X

(mm)

Y

(mm)

240-7-1

CDV-0060

0.6t

765

434

305

50

100

12

7.0



Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
