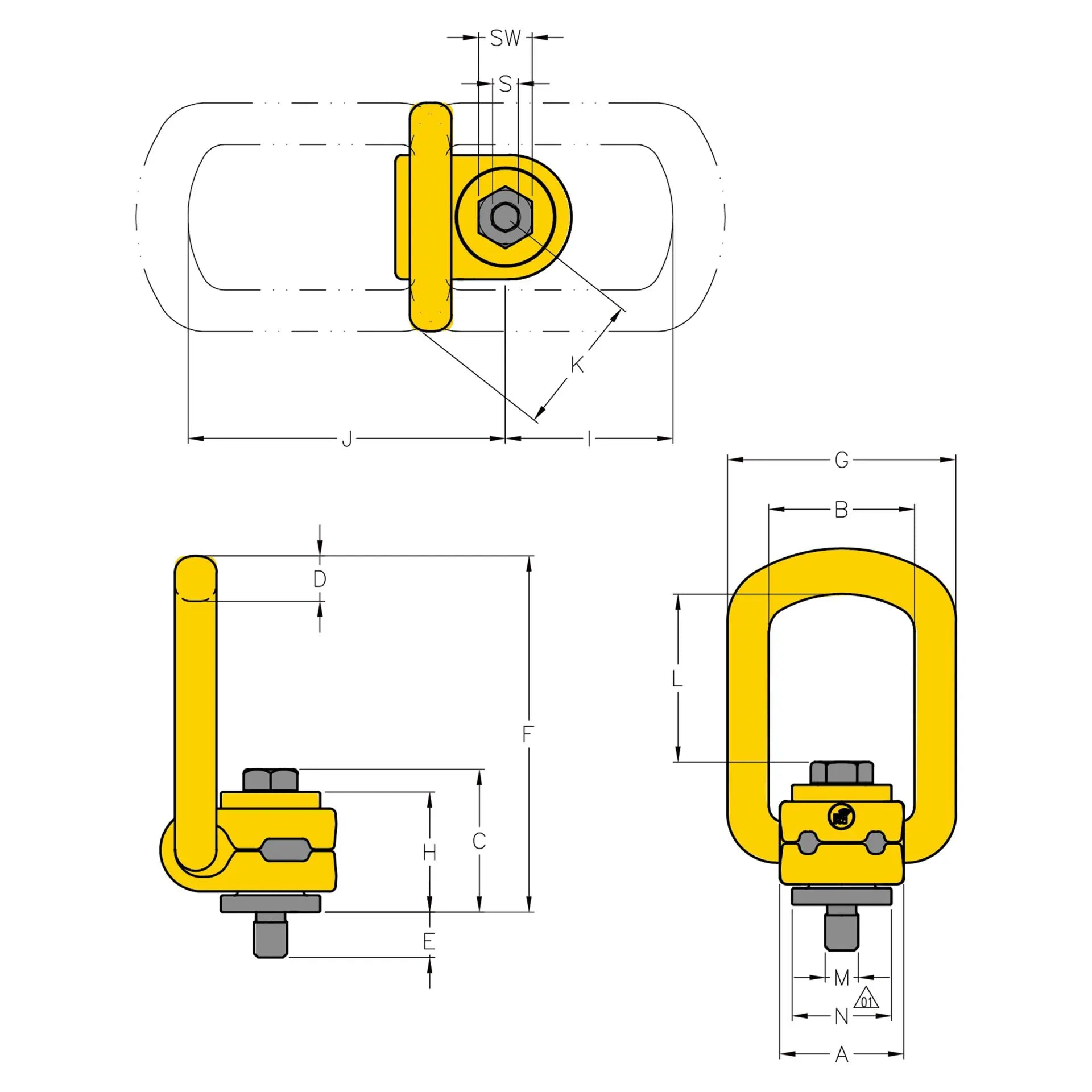

YOKE Digital Lifting Point - Metric Thread Dimensions
YOKE Digital Lifting Point - Metric Thread Usage
    YOKE Digital Lifting Point - Metric Thread
    YOKE Digital Lifting Point - Metric Thread Dimensions
    YOKE Digital Lifting Point - Metric Thread Usage
YOKE Digital Lifting Point - Metric Thread
YOKE Digital Lifting Point - Metric Thread Dimensions
YOKE Digital Lifting Point - Metric Thread Usage
YOKE Digital Lifting Point - Metric Thread
YOKE Digital Lifting Point - Metric Thread Dimensions
YOKE Digital Lifting Point - Metric Thread Usage
    YOKE Digital Lifting Point - Metric Thread
    YOKE Digital Lifting Point - Metric Thread Dimensions
    YOKE Digital Lifting Point - Metric Thread Usage
YOKE Digital Lifting Point - Metric Thread
YOKE Digital Lifting Point - Metric Thread Dimensions
YOKE Digital Lifting Point - Metric Thread Usage

Product Information

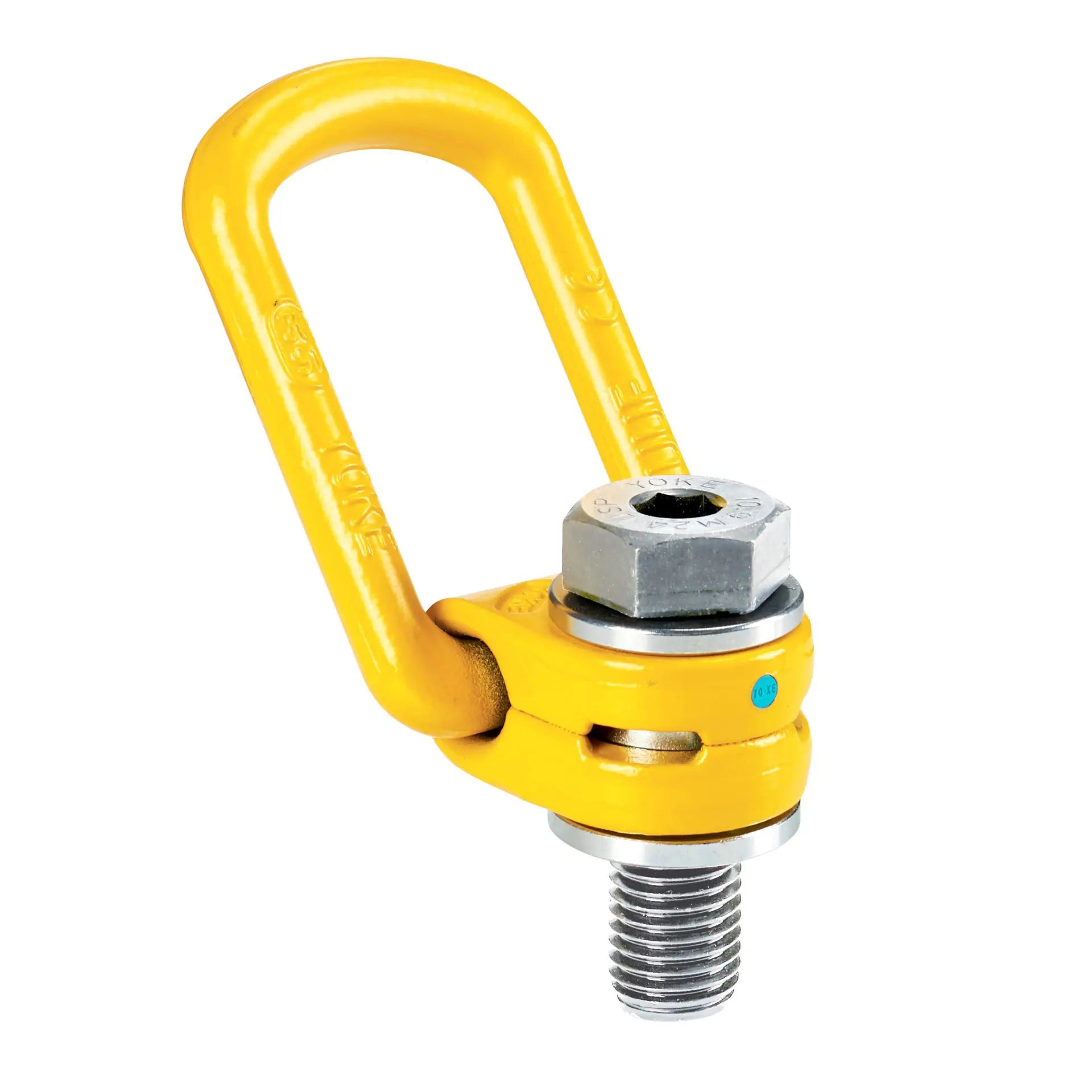

YOKE Digital Lifting Point - Metric Thread

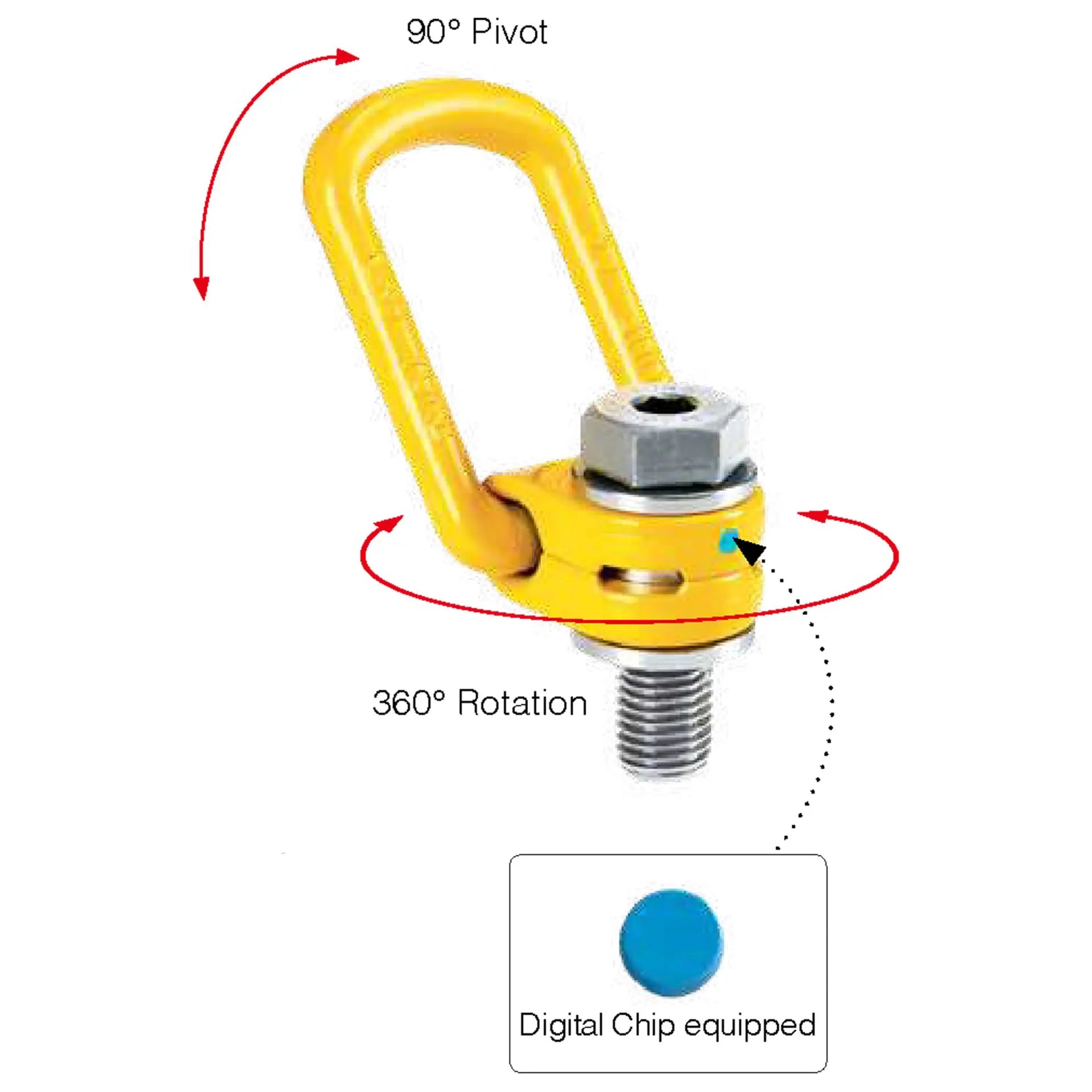

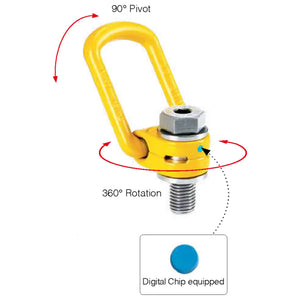

  • Rotates through 360° and pivots 90°
  • Manufactured from alloy steel, quenched and tempered
  • Tested in accordance with EN1677-1
  • Certified by DGUV GS-OA 15-04
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

Spec

SKU Capacity (t) Bolt Size (mm) Torque (Nm) Weight (kg)
276-1-1 0.3 M8 30 0.3
276-1-2 0.63 M10 60 0.4
276-1-3 1 M12 100 0.5
276-1-4 1.2 M14 120 0.5
276-1-5 1.5 M16 150 0.6
276-1-6 2.5 M20 250 1.6
276-1-7 4 M24 400 1.9
276-1-8 5 M30 500 3.1
276-1-9 7 M36 700 3.1
276-1-10 8 M36 800 5.9
276-1-11 10 M42 1000 6.3
276-1-12 15 M42 1500 10.9
276-1-13 20 M48 2000 12.1
