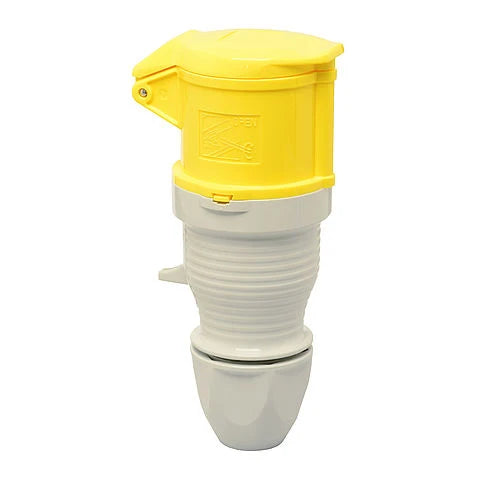

Walther | COUPLER 16A 4P 4H WITH CABLE GLAND Ref: 280-5

WALTHER Coupler 16A 4P 110V 4h IP44 made from PA6 material with screw terminal with external grommet and an injected 2K seal Increased safety due to two contact screws.

SPEC

IEC-amperage: 16 A
Amperage acc. UL/CSA (for UL-version): 20 A
Number of poles: 4
Voltage acc. EN 60309-2: 110 V (50+60 Hz) yellow
Clock hour position: 4 h
Identification colour: Yellow
RAL-number: 1018
Degree of protection (IP): IP44
Connection system: Screwed terminal
Angle of plug: Straight
Cable entry: Anti-kink sleeve
Material: Plastic
Walther Part-No: 310404

CERTIFICATES

VDE certification 123016VDE Zertifizierung 123016

UL certification E329476UL Zertifizierung E329476
UL certification E188992UL Zertifizierung E188992
EAC certification BY112.02.01.020 06101 EAC Zertifizierung BY112.02.01.020 06101

CSA certification 70096522 CSA Zertifizierung 70096522



Walther | COUPLER 16A 4P 4H WITH CABLE GLAND Ref: 280-5

WALTHER Coupler 16A 4P 110V 4h IP44 made from PA6 material with screw terminal with external grommet and an injected 2K seal Increased safety due to two contact screws.

SPEC

IEC-amperage: 16 A
Amperage acc. UL/CSA (for UL-version): 20 A
Number of poles: 4
Voltage acc. EN 60309-2: 110 V (50+60 Hz) yellow
Clock hour position: 4 h
Identification colour: Yellow
RAL-number: 1018
Degree of protection (IP): IP44
Connection system: Screwed terminal
Angle of plug: Straight
Cable entry: Anti-kink sleeve
Material: Plastic
Walther Part-No: 310404

CERTIFICATES

VDE certification 123016VDE Zertifizierung 123016

UL certification E329476UL Zertifizierung E329476
UL certification E188992UL Zertifizierung E188992
EAC certification BY112.02.01.020 06101 EAC Zertifizierung BY112.02.01.020 06101

CSA certification 70096522 CSA Zertifizierung 70096522
