Product Information

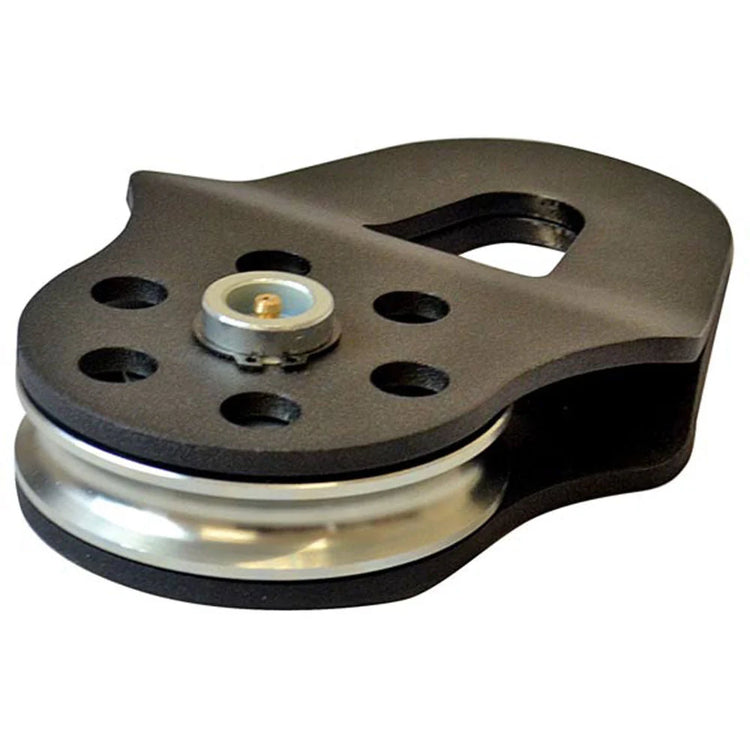

Warrior Pulley Block - 20000Lbs Swing Away with Grease Nipple

For use with cable ' (Equal to or less than) 13mm Diameter.
Suitable for 4500-20000lbs Spartan & Samurai

Suitable for Trailer and ATV winches.

This Black Edition 20000lb pulley block is suitable for both steel and synthetic* ropes from 8mm to 12mm. It comes complete with a grease nipple allowing continued free running of the pulley wheel. The main body is coated with a tough matt black finish and the roller is finished with a durable zinc/galvanised finish. This is an essential bit of kit to have in your accessory kit inside your 4x4 and recovery truck.


Dimensions:

  • Overall Size = 144mm x 215mm x 46mm
  • Roller Size = 105mm x 21mm
  • Pin Size = 27mm
  • Maximum Capacity = 20000lb (9072 kg)

It is important that a pulley with a damaged roller must not be used with a synthetic rope as it could possibly damage the cable.

Downloads

  Duct rod data sheetProduct data sheet

Warrior Pulley Block - 20000Lbs Swing Away with Grease Nipple

For use with cable ' (Equal to or less than) 13mm Diameter.
Suitable for 4500-20000lbs Spartan & Samurai

Suitable for Trailer and ATV winches.

This Black Edition 20000lb pulley block is suitable for both steel and synthetic* ropes from 8mm to 12mm. It comes complete with a grease nipple allowing continued free running of the pulley wheel. The main body is coated with a tough matt black finish and the roller is finished with a durable zinc/galvanised finish. This is an essential bit of kit to have in your accessory kit inside your 4x4 and recovery truck.


Dimensions:

  • Overall Size = 144mm x 215mm x 46mm
  • Roller Size = 105mm x 21mm
  • Pin Size = 27mm
  • Maximum Capacity = 20000lb (9072 kg)

It is important that a pulley with a damaged roller must not be used with a synthetic rope as it could possibly damage the cable.
