Product Information

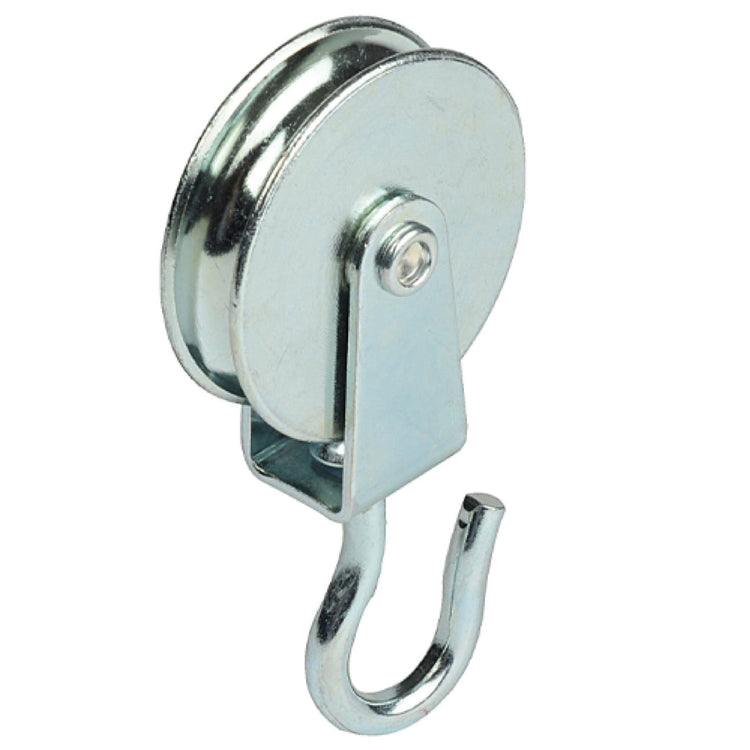

Steel or Galvanised Cast Iron Pulley with Rotating Hook Type ETT-198 : 15kg to 70kg

  • Steel or galvanised cast iron single pulley / sheave with rotating hook
  • Fitted with Plain bearing
  • Material finish - steel for pulley diameter sizes 30, 40, 50 and 60mm, galvanised cast iron for diameter sizes 80 and 100mm
  • Capacities available from 15kg through to 70kg
  • To suit 5mm through to 16mm rope (see specification PDF for full details)
  • For use with hemp and synthetic fibre ropes
  • SWISS MANUFACTURED

    Spec

    Model Max Capacity Pulley Diameter Max Rope Diameter
    155-20-1 15 kg 30 mm 5 mm
    155-20-2 20 kg 40 mm 7 mm
    155-20-3 30 kg 50 mm 8 mm
    155-20-4 40 kg 60 mm 10 mm
    155-20-5 50 kg 80 mm 12 mm
    155-20-6 70 kg 100 mm 16 mm

      Downloads

      PulleyPulley Cat 2018

      PulleyEtter 198 Pulley Data Sheet


      Steel or Galvanised Cast Iron Pulley with Rotating Hook Type ETT-198 : 15kg to 70kg

      • Steel or galvanised cast iron single pulley / sheave with rotating hook
      • Fitted with Plain bearing
      • Material finish - steel for pulley diameter sizes 30, 40, 50 and 60mm, galvanised cast iron for diameter sizes 80 and 100mm
      • Capacities available from 15kg through to 70kg
      • To suit 5mm through to 16mm rope (see specification PDF for full details)
      • For use with hemp and synthetic fibre ropes
      • SWISS MANUFACTURED

        Spec

        Model Max Capacity Pulley Diameter Max Rope Diameter
        155-20-1 15 kg 30 mm 5 mm
        155-20-2 20 kg 40 mm 7 mm
        155-20-3 30 kg 50 mm 8 mm
        155-20-4 40 kg 60 mm 10 mm
        155-20-5 50 kg 80 mm 12 mm
        155-20-6 70 kg 100 mm 16 mm

          Downloads

          PulleyPulley Cat 2018

          PulleyEtter 198 Pulley Data Sheet
