Product Information

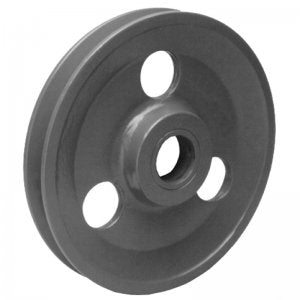

Wire Rope Sheaves made of Cast Iron (Model No. 169)

Turned groove, compatible with fixed roller No. 186 and wire rope guide pulleys No. 191 and No. 192.

Outside external diameter Ø 60 - 325mm: with self-lubricating bearing with grease chamber.

Outside external diameter Ø 375 - 470mm: with bronze bearing with grease lubrication pockets.

Range of pulley capacity from 220kg up to 10,000kg

Range of pulley diameter from 60mm up to 470mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date

Spec

SKU   182-169-60 182-169-90 182-169-120 182-169-150 182-169-190 182-169-235 182-169-280 182-169-325 182-169-375 182-169-470
Sheave External Ø mm 60 90 120 150 190 235 280 325 375 470
Groove BaseØ mm 48 72 100 125 160 200 240 280 320 400
Groove Radius mm 1.5 2 2.5 3 4 5 6 7 8 10
Groove Depth mm 6 9 10 12 15 17 20 22 27 35
Rim Width mm 13 15 18 22 27 32 36 41 48 58
Bore for Bolt mm 8 14 14 22 32 40 50 60 70 70
Hub Length mm 24 32 35 40 42 50 62 70 85 90
Hub Ø mm 22 32 35 46 62 78 92 108 120 140
Rope Ø Max. mm 3 4 5 6 8 10 12 14 16 20
Load Capacity (in kg. kg 220 300 500 1000 1500 2000 3000 4000 6400 10000
Weight (in kg) approx. kg 0.3 0.52 0.85 2.6 2.6 4.5 6.8 10.8 16.5 34.7

Wire Rope Sheaves made of Cast Iron (Model No. 169)

Turned groove, compatible with fixed roller No. 186 and wire rope guide pulleys No. 191 and No. 192.

Outside external diameter Ø 60 - 325mm: with self-lubricating bearing with grease chamber.

Outside external diameter Ø 375 - 470mm: with bronze bearing with grease lubrication pockets.

Range of pulley capacity from 220kg up to 10,000kg

Range of pulley diameter from 60mm up to 470mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date

Spec

SKU   182-169-60 182-169-90 182-169-120 182-169-150 182-169-190 182-169-235 182-169-280 182-169-325 182-169-375 182-169-470
Sheave External Ø mm 60 90 120 150 190 235 280 325 375 470
Groove BaseØ mm 48 72 100 125 160 200 240 280 320 400
Groove Radius mm 1.5 2 2.5 3 4 5 6 7 8 10
Groove Depth mm 6 9 10 12 15 17 20 22 27 35
Rim Width mm 13 15 18 22 27 32 36 41 48 58
Bore for Bolt mm 8 14 14 22 32 40 50 60 70 70
Hub Length mm 24 32 35 40 42 50 62 70 85 90
Hub Ø mm 22 32 35 46 62 78 92 108 120 140
Rope Ø Max. mm 3 4 5 6 8 10 12 14 16 20
Load Capacity (in kg. kg 220 300 500 1000 1500 2000 3000 4000 6400 10000
Weight (in kg) approx. kg 0.3 0.52 0.85 2.6 2.6 4.5 6.8 10.8 16.5 34.7
